| 0.5t/H Double Pass Reverse Osmosis System | |||
| Model | JFRO-II-500L | ||
| Producing Capacity | 500L/H | RO membrane | 4″ |
| Recovery Rate | ≥70% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 1.0-1.6MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Desalination Rate | 99% | Power Consumption | 5kW |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control |
| Feed Water Quality | SDI<5 Free Chlorine Concentration<0.1mg/L TDS<2000mg/L | ||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
The equipment can be customized according to your requirements.
Product Description:

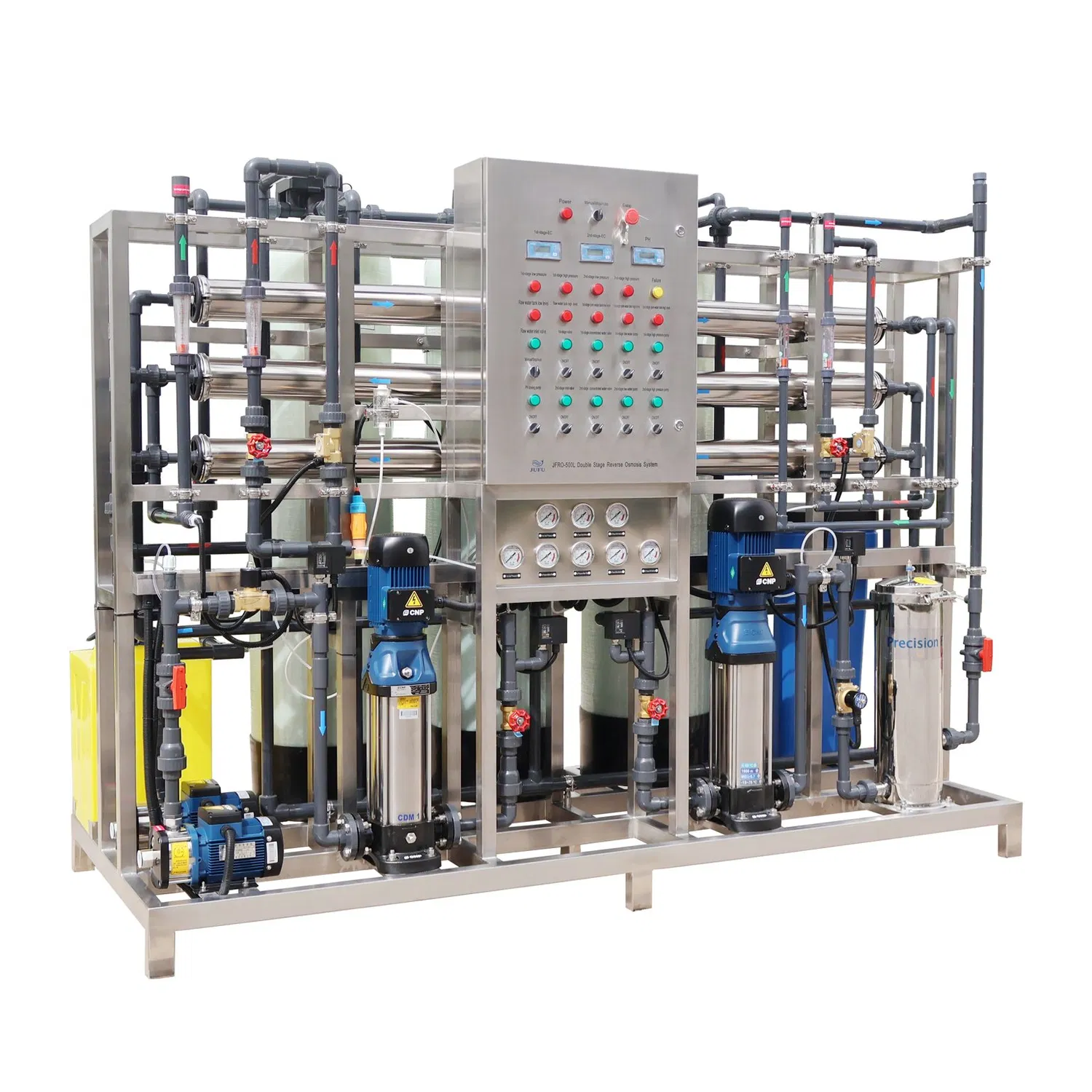

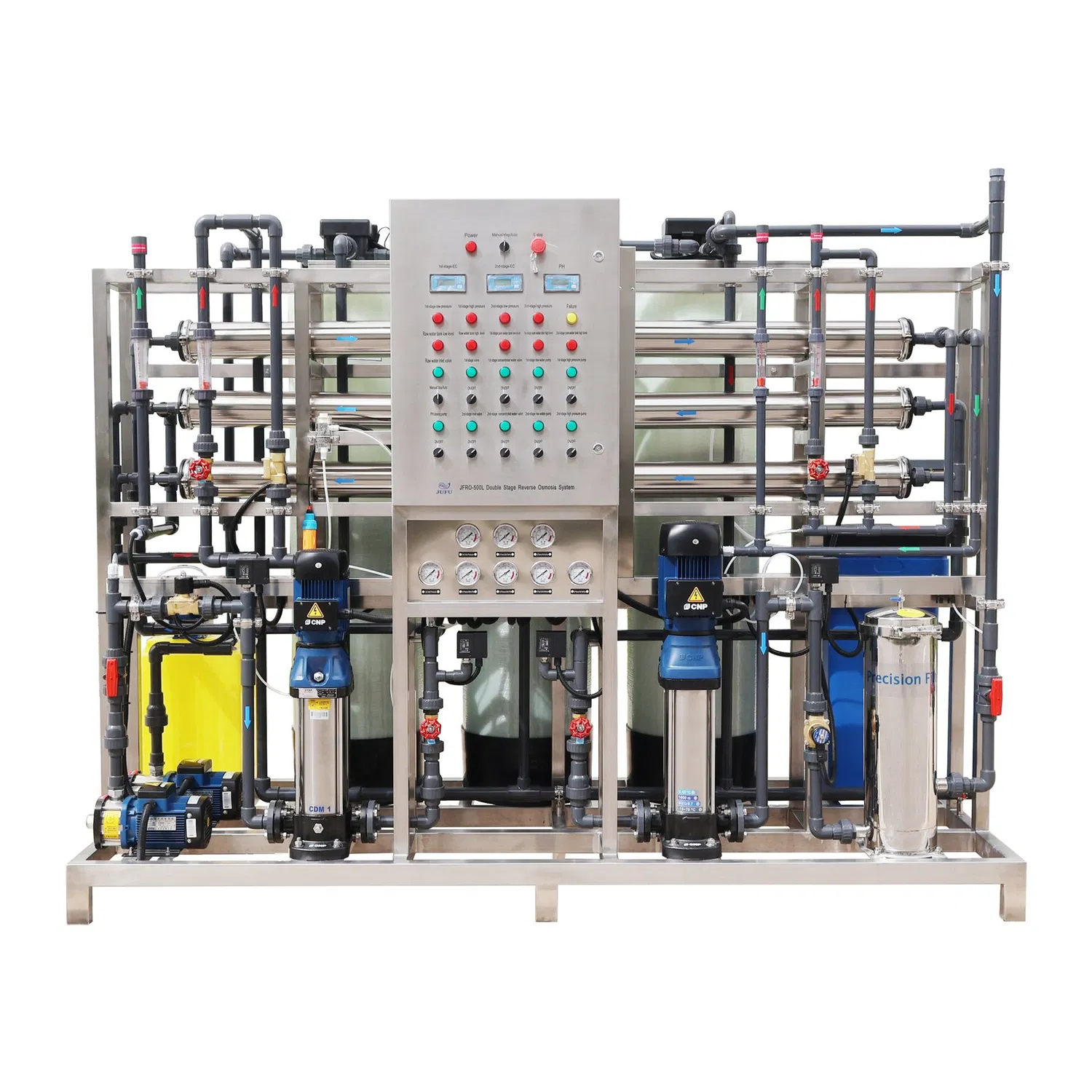

500LPH Double Stage Reverse Osmosis Water Filter Plant
The 500LPH Double-stage reverse osmosis (RO) water treatment system is a compact, high-efficiency purification solution designed for industries requiring stringent water quality standards.It ensures superior corrosion resistance and hygiene compliance. This system utilizes dual-stage RO technology to remove over 98% of dissolved salts, heavy metals, organic compounds, and bacteria, delivering ultra-pure water at a rate of 0.5 tons per hour. Ideal for food/beverage production, pharmaceutical labs, and electronics manufacturing, it combines durability with advanced pretreatment (multimedia/activated carbon filters) and optional post-treatment (UV sterilization) for tailored purity. Automated controls and energy-efficient operation further enhance its reliability for small-scale industrial applications.
