Product description:

The microporous aerator, a cutting-edge aeration system developed by our factory, has replaced traditional alternatives like flat-plate and corundum-type systems. Conventional microporous aerators suffer from limited oxygen delivery capacity, prone to water accumulation and scaling in distribution pipes, which can shorten the service life of rubber diaphragms. In contrast, the flat-plate microporous aerator features rubber diaphragms tightly attached to its base plate. During operation, air pressure causes the diaphragm to bulge slightly. The significantly larger central bulge area enables the diaphragm’s core to generate bubbles approximately twice as large compared to peripheral bubbles.

Additionally, peripheral membrane sheets tend to stick tightly to the chassis base, resulting in only about 80% of the membrane’s pores being fully utilized. This inefficient design leads to poor oxygenation capacity and a short lifespan (2 years). In contrast, our factory’s air-guided micro-arched micro-porous aerator features a scientifically optimized structure, advanced manufacturing processes, and innovative design – making it a cutting-edge new product.

The aeration membrane and its base feature a distinctive spherical structure with integrated airflow guidance devices, ensuring uniform oxygen distribution across the membrane surface. The rubber membrane achieves 100% pore opening rate under balanced stress, significantly enhancing oxygen supply capacity and utilization efficiency while extending service life (typically 5-6 years). This performance remains consistent even during low-volume operation. The aeration system demonstrates exceptional clogging resistance and effective prevention of water backflow. Under intermittent operation conditions, the membrane surface resists sludge accumulation. Its core technical specifications and oxygenation efficiency now meet or surpass world-class standards.

Advantages and features:

1.External dimensions: The diameter of the chassis support is $215mm, the diameter of the spiral pressure cover is Ф200mm, and the diameter of the rubber diaphragm is Ф215mm. The internal structure has been modified, with the overall reinforcement ribs increasing the thickness to ensure strength during operation; at the same time, the service area has been significantly increased.

2. Rubber diaphragm aeration hole: The rubber diaphragm aeration hole adopts mechanical drilling technology and has 5,600 holes. It mainly improves the aeration capacity and expands the aeration service area.

3. Aerator Base Mounting: The mounting base features eight additional air guide ribs positioned 1cm below the lower part of the base where it connects to the membrane sheet. These ribs measure 1.8 cm in length, 0.5 cm in width, and 0.15cm in height, arranged uniformly. A 0.15cm clearance between the ribs and membrane sheet ensures uniform air distribution across the entire surface, achieving 100% aperture opening rate. This design significantly enhances oxygen supply capacity and oxygen utilization efficiency. Notably, even during low airflow conditions, these ribs maintain optimal performance, ensuring convenient operation and management.

Company Profile:

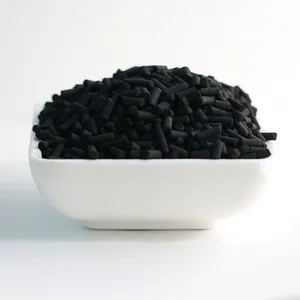

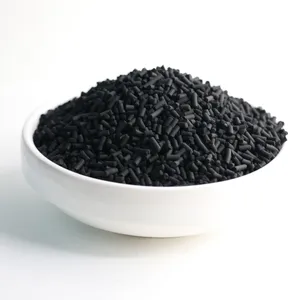

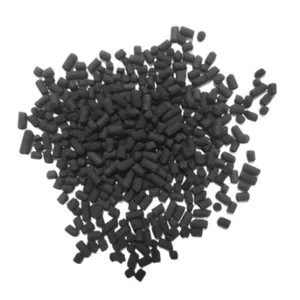

Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, which is known as the “Hometown of Environmental Protection” and located on the shore of Taihu Lake. The company focuses on the field of environmental protection technology and is committed to the research and development and production of eco-friendly products. Our main products include water treatment equipment such as reverse osmosis devices, sludge dewatering machines, mechanical screens, aerators, automatic dosing systems, as well as electrical control cabinets, fillers, and activated carbon. We not only produce high-quality and stable products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. The mission of Shenghe Environmental Protection is to serve customers and lead the environmental protection industry. Our professional production and operation maintenance team provides you with the best solutions and services.

FAQ:

Q: Can you customize products?

A: Yes, we customize machines according to client requirements.

Q: Where is your factory located?

A: In Yixing City, very close to Shanghai-a 2-hour drive.

Q: Do you provide after-sales service?

A: Yes, our engineers offer technical support.

Q: What’s your warranty period?

A: One year after delivery.

Q: What’s your delivery timeline?

A: Typically within 45 days after advance payment.

Q: How do you package exported products?

A: We usually use preservative-treated wooden crates.

Q: What payment methods do you accept?

A: Typically wire transfers or letters of credit.

Q: What shipping options do you provide?

A: Customers decide the transportation method-air freight, express delivery, or sea freight.
