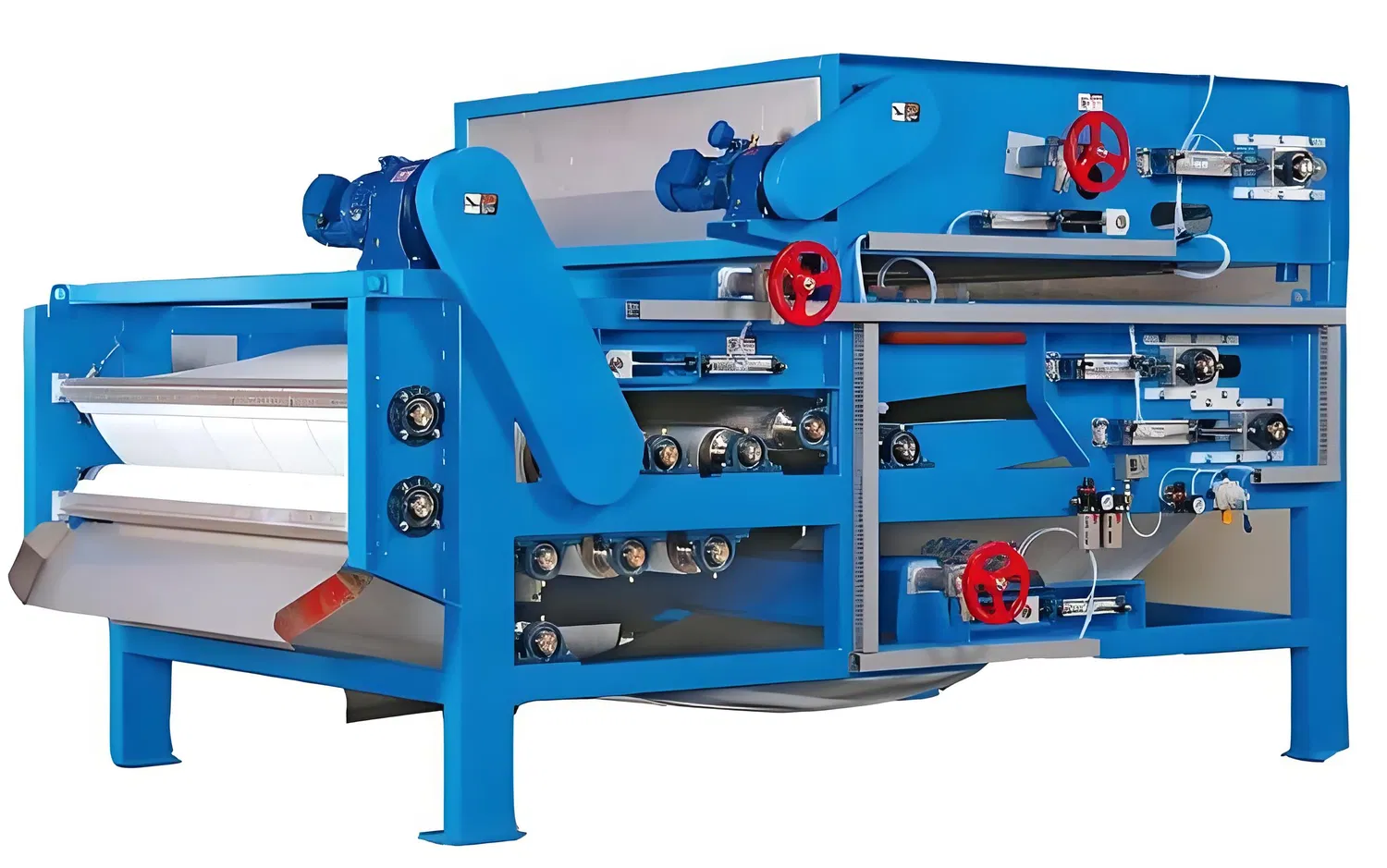

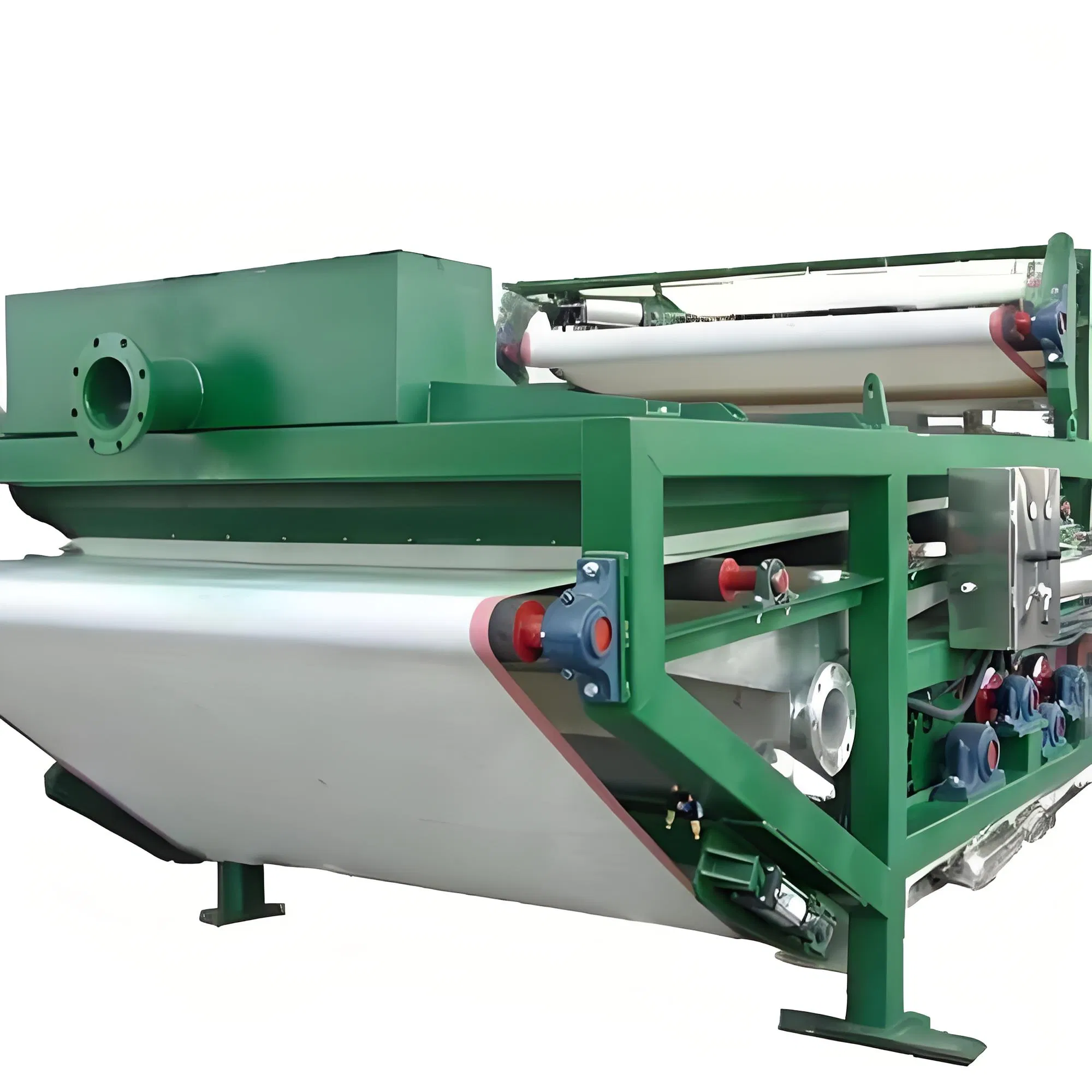

Advanced Sludge Dewatering Belt Filter Press for Efficient Water Treatment

Model HYBFP1000 HYBFP1500 HYBFP2000 Remark
Belt Width (mm) 1000 1500 2000 —–
Treating Capacity (m³/h)
Inlet Consistency (S.S1-5%)
12.5-15 20-25 30-35 Depends on Sludge Category
Dried Sludge (kg/h) 100-188 160-300 240-450 Depends on Sludge Category
Mud Cake Water Content’s Rate (%) 75-85 75-85 75-85 Depends on Sludge Category
Power Consumption (kw) Driving Motor (frequency control) 0.37 0.75 0.75 —–
Disposal Agitator Motor 0.37 0.55 0.75 —–
Drum thickener 0.75 0.75 1.1 —–
Lower Collecting Tray for Pressed Filtrate Yes Yes No —–
External Dimensions (mm) L 4050 4680 5150 Please ask for actual installation size picture before purchasing
W 1770 2100 2750
H 2250 2980 3190
Dase Dimension L1*W1(mm) 2100*1300 2440*1720 2715*2420 —–
Dase Dimension L2*W2 (mm) 640*800 740*800 950*1100 —–
Reference Weight (kg) 2000 2850 3500 —–
Customization Accepted

  • Product Details

Product Description

What is a Belt Filter Press?

A Belt Filter Press is a sludge dewatering device that applies mechanical pressure to a chemically conditioned slurry, which is sandwiched between two (2) tensioned belts, by passing those belts through a serpentine of decreasing diameter rolls. The machine can actually be divided into three (3) zones: the gravity zone, where free draining water is drained by gravity through a porous belt; the wedge zone, where the solids are prepared for pressure application; and the pressure zone, where medium, then high pressure is applied to the conditioned solids.
Advanced Sludge Dewatering Belt Filter Press for Efficient Water Treatment

Working Principle



Advanced Sludge Dewatering Belt Filter Press for Efficient Water Treatment
Working principle
Its operating principle is to condition the feed sludge with a polyelectrolyte and drain the flocculated sludge over an endless, horizontal porous filter belt. The thickened sludge is then sandwiched by a second filter belt before further dewatering by a series of decreasing diameter rollers. Final moisture removal is achieved by shear rollers arranged to give minimum 180 degree belt wrap in order to optimize dewatering.
 Advanced Sludge Dewatering Belt Filter Press for Efficient Water Treatment
