| Product Name | Product Parameters | Relevant Technical Parameters |
| Φ215 Aeration Head | Model:Φ215mm | Working Ventilation:1-3m³/h per piece Service Area:0.3-0.65m³/h per piece |
| Material:EPDM rubber membrane, silicone rubber membrane | Oxygen Utilization:≥32% Oxygenation Capacity:≥0.1Kg/h | |
| Shape:arched, outer wire | Submerged Water Depth:3-6m Air Supply Volume:2m³/h | |
| Φ260 Aeration Head | Model:Φ260mm | Working Ventilation:2-4m³/h per piece Service Area:0.4-0.8m³/h per piece |
| Material:EPDM rubber membrane, silicone rubber membrane | Oxygen Utilization:≥32% Oxygenation Capacity:≥0.2Kg/h | |
| Shape:arched, outer wire | Submerged Water Depth:3-6m Air Supply Volume:3m³/h | |
| Φ300 Aeration Head | Model:Φ300mm | Working Ventilation:3-6m³/h per piece Service Area:0.5-1.0m³/h per piece |
| Material:EPDM rubber membrane, silicone rubber membrane | Oxygen Utilization:≥32% Oxygenation Capacity:≥0.28Kg/h | |
| Shape:arched, outer wire | Submerged Water Depth:3-6m Air Supply Volume:4.25m³/h |
Product Description:

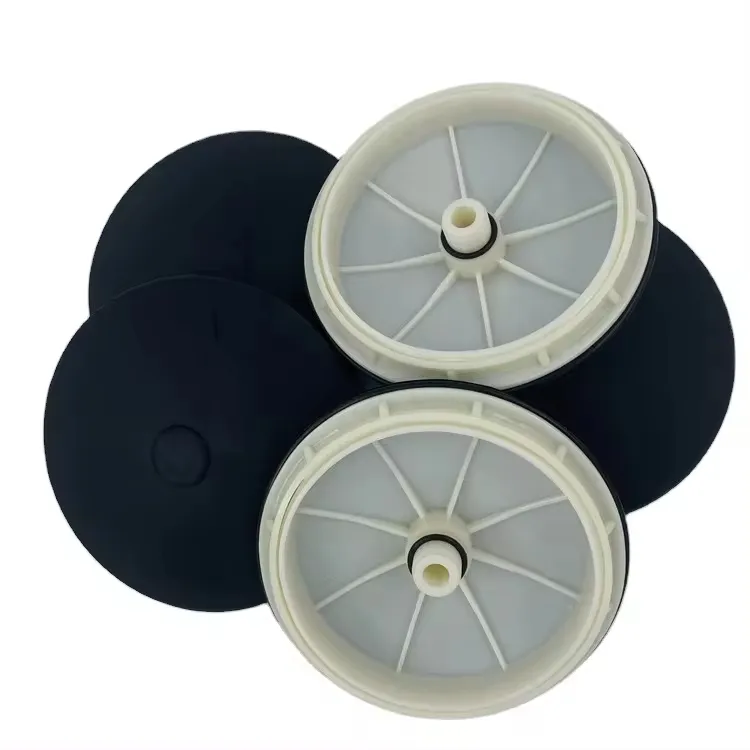

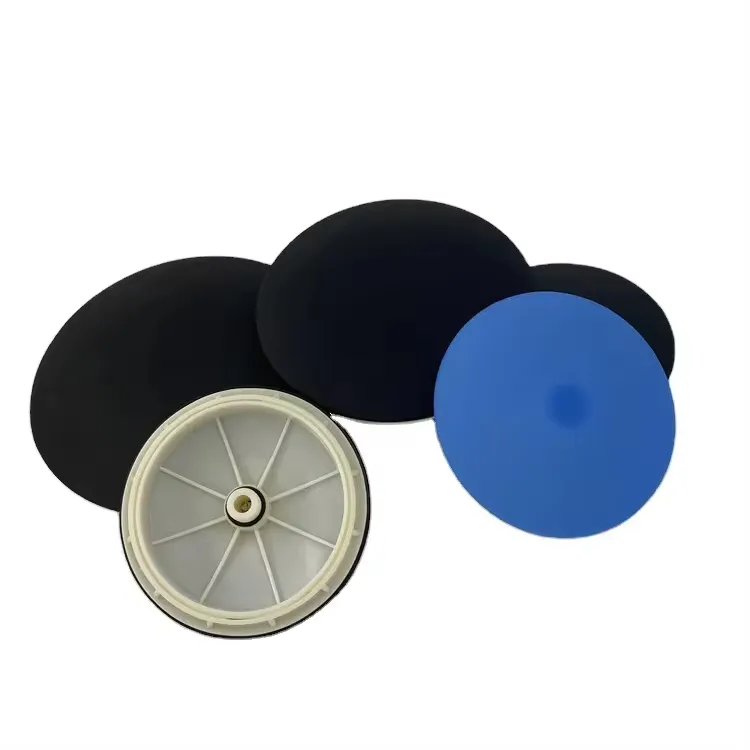

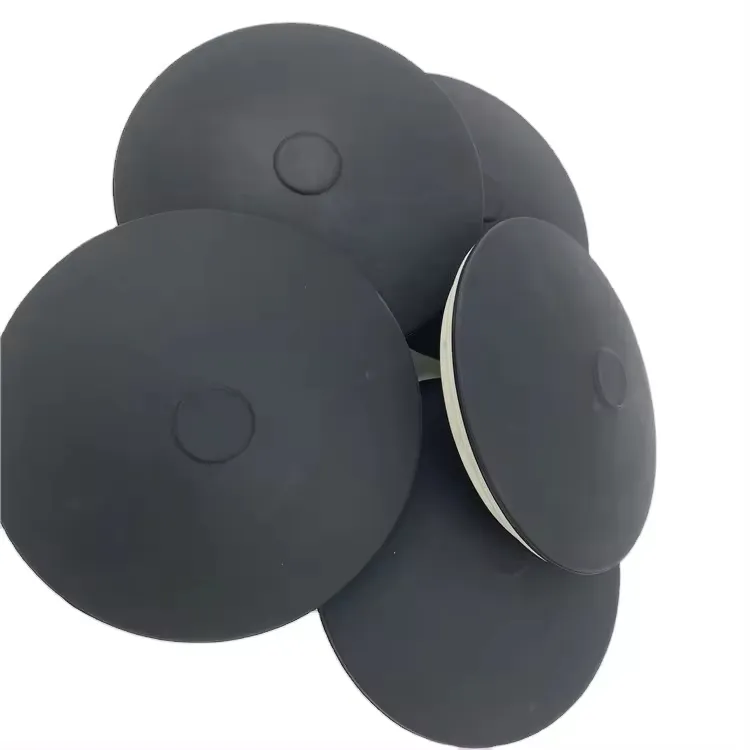

The diaphragm type aerator is made of ABS engineering plastic as the main body and is processed with special technology. When the microporous aerator is oxygenated and aerated, the incoming air is directly sent to the aerator after being buffered to ensure that the rubber diaphragm has low resistance at one time. Open easily. The aerator adopts threaded anti-locking mechanized assembly to ensure that the diaphragm never falls off.
The diaphragm aerator is arranged according to the air supply volume and the density of the pool shape. The aerator and the gas distribution pipe are connected with G3/4 threads. The base is internal thread (nationally fixed on the gas distribution pipe) and the aerator is external thread. When installing, first fix the required size of the regulator on the bottom of the pool, and then use a hoop to fix the air distribution pipe to the regulator.
