Automatic Chemical Dosing Unit Parameter:
Model Item |
YTH 500 |
YTH 1000 |
YTH 1500 |
YTH 2000 |
YTH 3000 |
YTH 4000 |
YTH 5000 |
YTH 6000 |
||
Capacity (L/h) |
Curing for an hour | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | |
Power(kw) | 0.94 | 2.45 | 2.45 | 2.62 | 4.89 | 4.89 | 4.89 | 4.89 | ||
PAM dosage(kg/h) | 1~5 | 2~10 | 3~15 | 3.5~20 | 4.5~25 | |||||
Water inlet(m³/h) | 0.3~1.5 | 0.6~3 | 0.9~4 | 1.2~6 | 2.0~10 | 2.4~12 | 2.4~12 | 2.4~12 | ||
Reference Dimension (mm) |
L | 1370 | 2000 | 2130 | 2200 | 2400 | 2720 | 2700 | 2970 | |
B | 680 | 1000 | 1070 | 1200 | 1300 | 1400 | 1500 | 1600 | ||
H | 1485 | 1770 | 1810 | 1970 | 2270 | 2355 | 2222 | 2322 | ||
L1 | 1320 | 1950 | 2080 | 2150 | 2350 | 2670 | 2630 | 2900 | ||
B1 | 720 | 1040 | 1110 | 1245 | 1340 | 1440 | 1550 | 1650 | ||
Powder feed port (DN) |
DN25 | DN32 | DN32 | DN32 | DN40 | DN40 | DN40 | DN40 | ||
Water inlet port (DN1) |
DN25 | DN32 | DN32 | DN32 | DN50 | DN50 | DN50 | DN50 | ||
Overflow port (DN2) |
DN32 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | DN40 | ||
Vent port (DN3) |
DN25 | DN32 | DN32 | DN32 | DN40 | DN40 | DN40 | DN40 | ||
N.W.(kg) | 250 | 400 | 490 | 550 | 700 | 770 | 960 | 1050 |
The machine can be customized according to your needs.
product introduction:

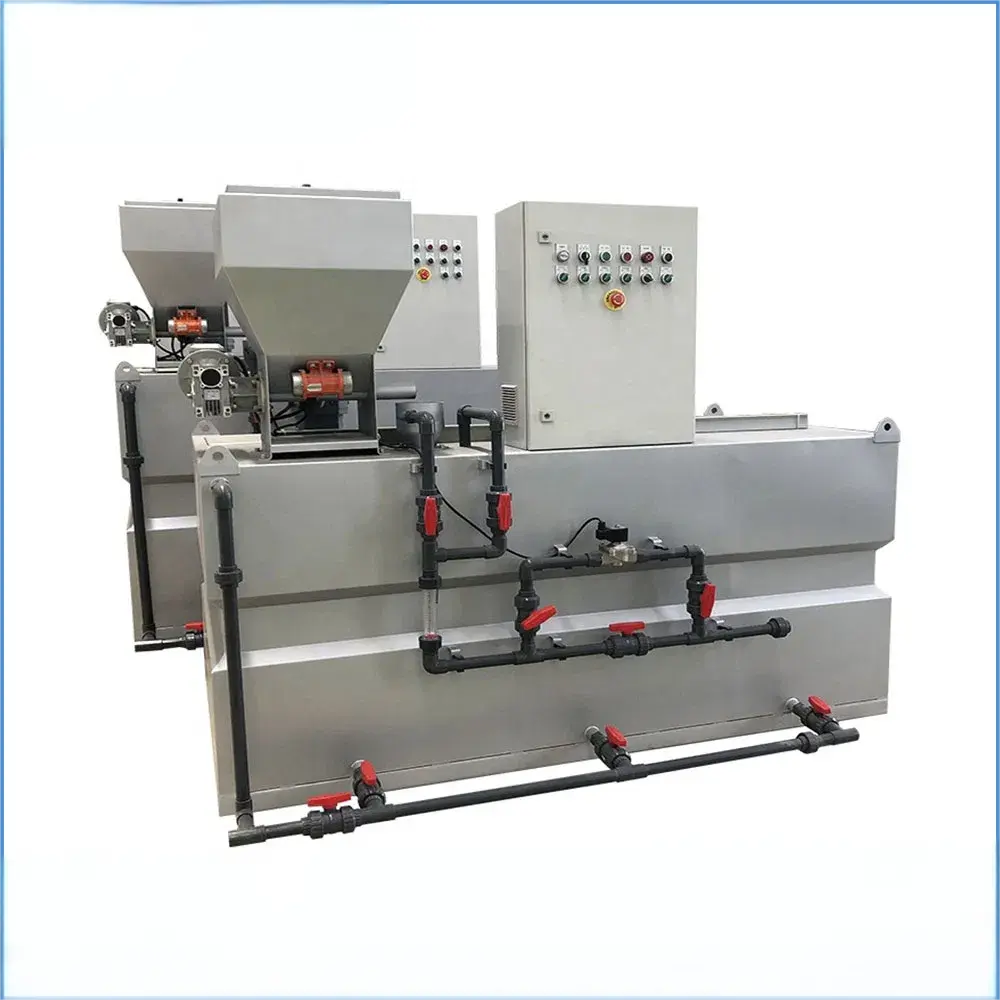

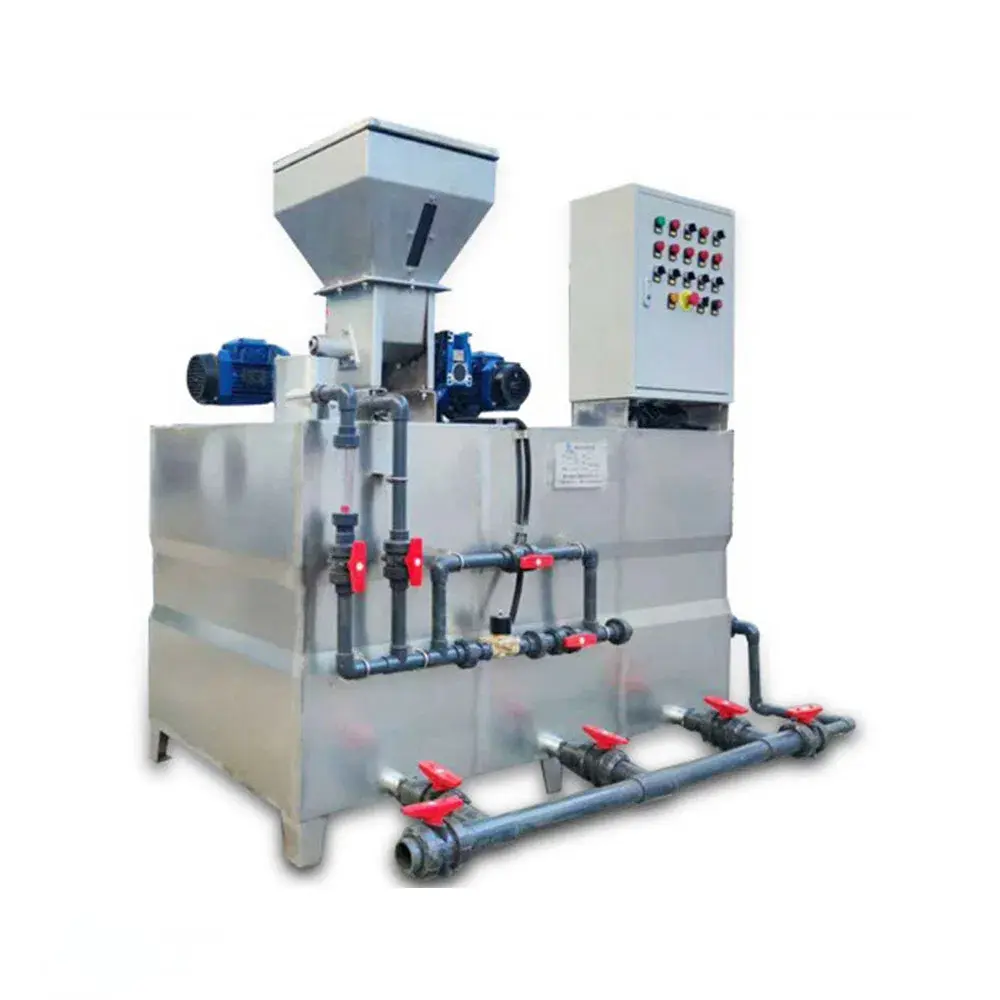

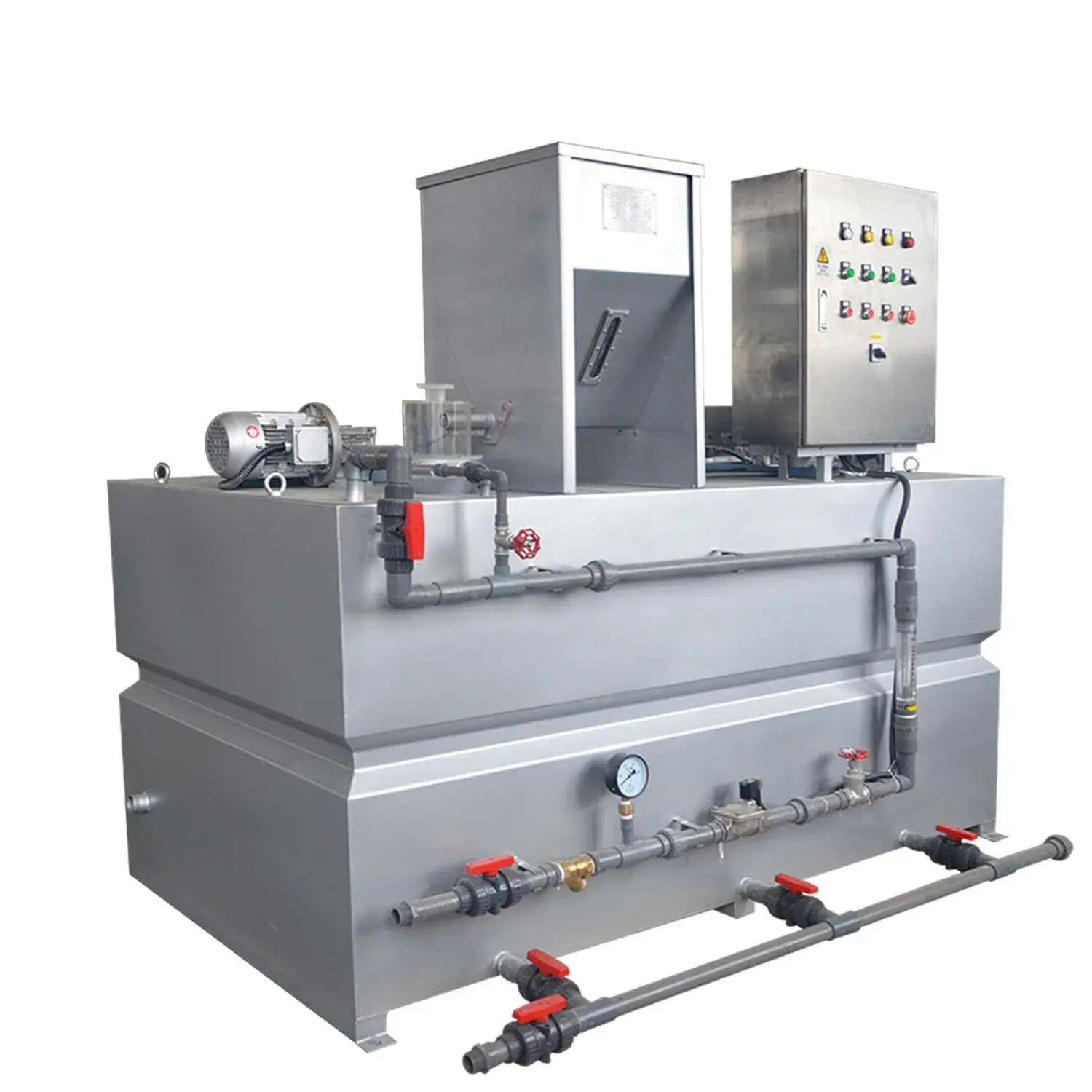

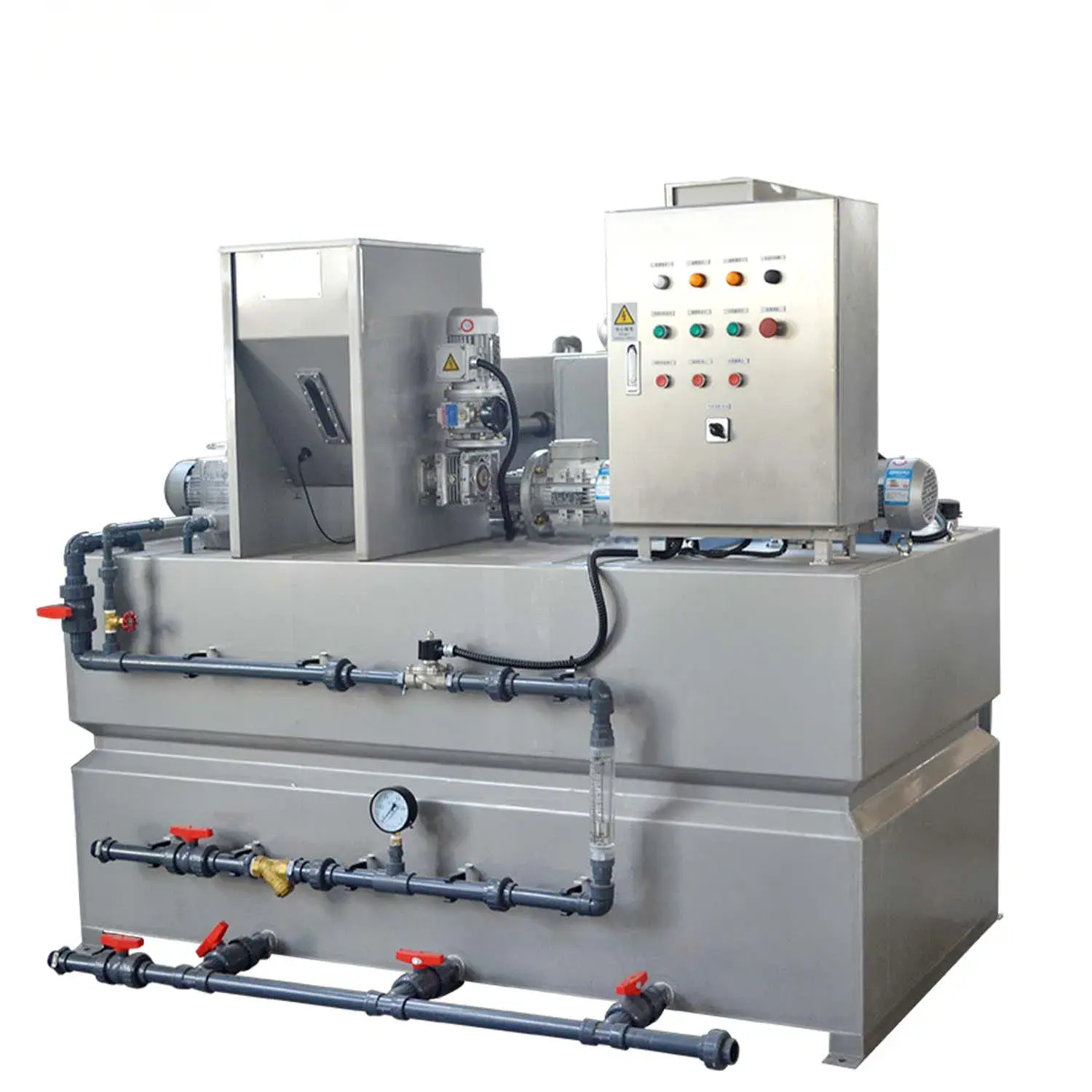

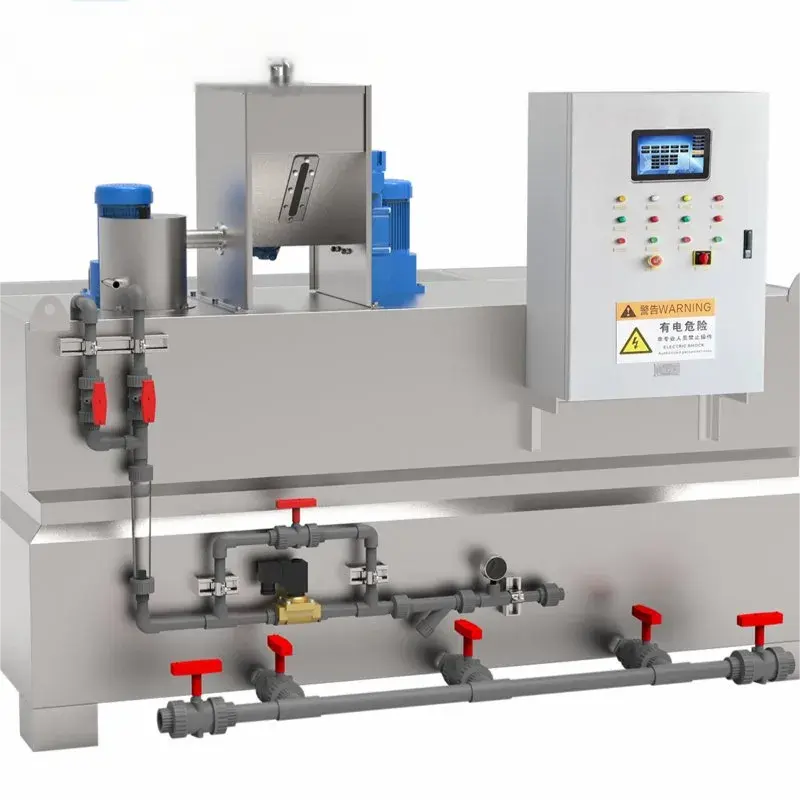

The automatic dosing machine is a system that automatically and precisely adds chemical agents to the system according to preset programs or real-time monitoring parameters. It is widely used in water treatment, industrial processes, medical fields, agricultural irrigation and other areas. Its core purpose is to replace manual dosing, achieve precise control, improve efficiency, stabilize water quality processes, and reduce labor intensity and operating costs.
Core components: drug storage system, dosage system, control system, safety and auxiliary system.
Product Advantages:
• Precise drug delivery and dosage: high measurement accuracy to avoid waste of drugs or insufficient dosage;
• High automation: can work 24 hours continuously to reduce labor;
• Machine operation stability: process parameters are stable, treatment effect is good;
• Safety and environmental protection: avoid direct contact between the agent and workers, reduce errors and safety risks;
• Flexible and controllable: the dosage can be adjusted at any time according to different processes;
Selection Guide:
The following factors should be considered when selecting an automatic dosing device:
• Properties of the agent, such as corrosiveness and warmth
• Determine the maximum and minimum amount of injection
• Control requirements: select timing, proportion and other control methods
• Site environment: whether there are special requirements such as blasting and protection
Company Profile:
Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, which is known as the “Hometown of Environmental Protection” and located on the shore of Taihu Lake. The company focuses on the field of environmental protection technology and is committed to the research and development and production of eco-friendly products. Our main products include water treatment equipment such as reverse osmosis devices, sludge dewatering machines, mechanical screens, aerators, automatic dosing systems, as well as electrical control cabinets, fillers, and activated carbon. We not only produce high-quality and stable products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. The mission of Shenghe Environmental Protection is to serve customers and lead the environmental protection industry. Our professional production and operation maintenance team provides you with the best solutions and services.
FAQ:
Q: Can you customize products?
A: Yes, we customize machines according to client requirements.
Q: Where is your factory located?
A: In Yixing City, very close to Shanghai-a 2-hour drive.
Q: Do you provide after-sales service?
A: Yes, our engineers offer technical support.
Q: What’s your warranty period?
A: One year after delivery.
Q: What’s your delivery timeline?
A: Typically within 45 days after advance payment.
Q: How do you package exported products?
A: We usually use preservative-treated wooden crates.
Q: What payment methods do you accept?
A: Typically wire transfers or letters of credit.
Q: What shipping options do you provide?
A: Customers decide the transportation method-air freight, express delivery, or sea freight.
