Automatic Dosing System Parameter:
The equipment can be customized according to your requirements.
| type | output | Mechanical dimensions(mm) | volume | power | material quality | |||
| length | width | height | Height of decoction pot | |||||
| JY-5 | 500 | 1500 | 900 | 1650 | 800 | 1m3 | 1.83kw | PVC |
| JY-10 | 1000 | 1625 | 1000 | 1750 | 1050 | 1.7m3 | 1.83kw | PVC |
| JY-15 | 1500 | 2000 | 1000 | 1800 | 1050 | 2.06m3 | 1.83kw | PVC |
| JY-20 | 2000 | 2440 | 1220 | 1800 | 1050 | 3.1m3 | 1.83kw | PVC |
| JY-30 | 3000 | 3200 | 1220 | 2000 | 1350 | 5.27m3 | 2.43kw | PVC |
| JY-40 | 4000 | 3200 | 1450 | 2000 | 1350 | 6.26m3 | 2.43kw | PVC |
| JY-50 | 5000 | 3350 | 1500 | 2300 | 1450 | 7.28m3 | 2.43kw | PVC |
| JY-80 | 8000 | 4650 | 1750 | 2450 | 1650 | 13.42m3 | 2.43kw | PVC |

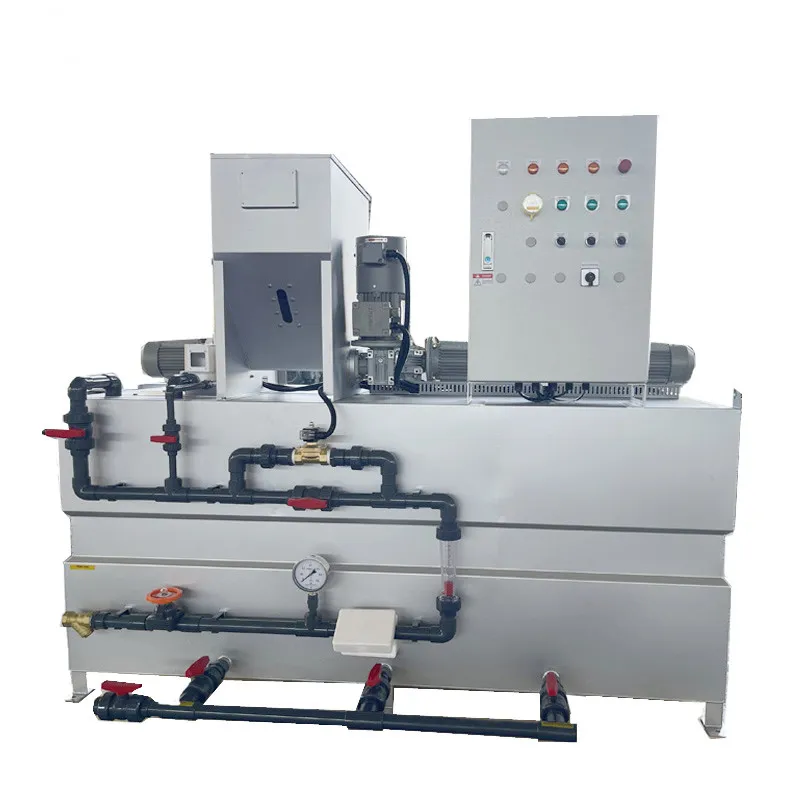

Product Description:
Shenghe’s automatic dry powder dosing and dissolution system features a standard stainless steel tank, variable-speed dosing system, chemical mixer, screw pump, water control solenoid valve, and low-speed stainless steel agitator. Optional upgrades include PLC automation, anti-cavity agitator, moisture heater for hoppers, metering pump, and powder shortage alarm. Custom configurations are available based on client requirements. Quality assurance: Stainless steel construction; IP54-rated control box; Venturi jet mixing at inlet; dedicated stainless steel agitator; argon arc welding ensures precise tank sealing.
This equipment is suitable for all solid organic flocculants. Due to years of practical testing, the dry powder feeding device has excellent performance. It can be used in a wide range of fields, such as water treatment, municipal drinking water treatment, industrial wastewater treatment, etc.
Features:
1. Automatic operation, save labor
2. Precise and adjustable dosage of reagent to ensure treatment effect and avoid waste
3. All stainless steel shell, all imported accessories, reliable quality, good corrosion resistance.
4. Easy maintenance with sleek design, no base or mounting required. The blender adjusts runtime flexibly to optimize performance while saving energy. Featuring robust technical support for custom process design. All information is contact-based.
Company Profile:
Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, which is known as the “Hometown of Environmental Protection” and located on the shore of Taihu Lake. The company focuses on the field of environmental protection technology and is committed to the research and development and production of eco-friendly products. Our main products include water treatment equipment such as reverse osmosis devices, sludge dewatering machines, mechanical screens, aerators, automatic dosing systems, as well as electrical control cabinets, fillers, and activated carbon. We not only produce high-quality and stable products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. The mission of Shenghe Environmental Protection is to serve customers and lead the environmental protection industry. Our professional production and operation maintenance team provides you with the best solutions and services.
FAQ:
Q: Can you customize products?
A: Yes, we customize machines according to client requirements.
Q: Where is your factory located?
A: In Yixing City, very close to Shanghai-a 2-hour drive.
Q: Do you provide after-sales service?
A: Yes, our engineers offer technical support.
Q: What’s your warranty period?
A: One year after delivery.
Q: What’s your delivery timeline?
A: Typically within 45 days after advance payment.
Q: How do you package exported products?
A: We usually use preservative-treated wooden crates.
Q: What payment methods do you accept?
A: Typically wire transfers or letters of credit.
Q: What shipping options do you provide?
A: Customers decide the transportation method-air freight, express delivery, or sea freight.
