HomeAeratorBubble Disc Type Air Diffuser Plastic Aerator Rotary Mixer Aerator

Bubble Disc Type Air Diffuser Plastic Aerator Rotary Mixer Aerator

Main technical parameters:
Model: CSPX-260;
Working air volume range: 2.0 – 10.0 m³/h (wide adaptability range of air volume)
Normal operating bubble diameter: 2 – 3 mm;
Resistance loss: ≤ 500 Pa (Low resistance loss, low energy consumption)
Oxygen utilization rate: 20 – 30%
The components and their materials (all made of engineering plastics, without any rubber components, and without any signs of aging, cracking or clogging, have a longer service life.)

  • Product Details

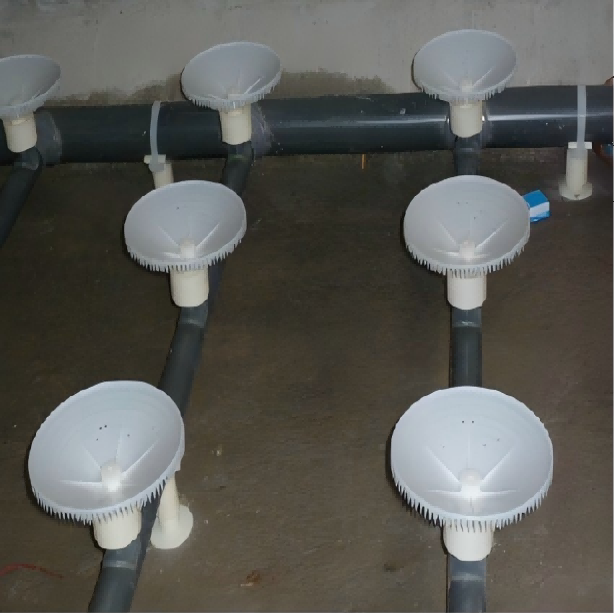

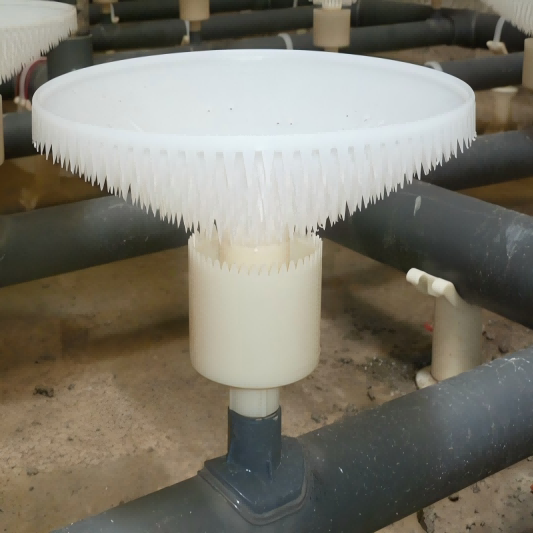

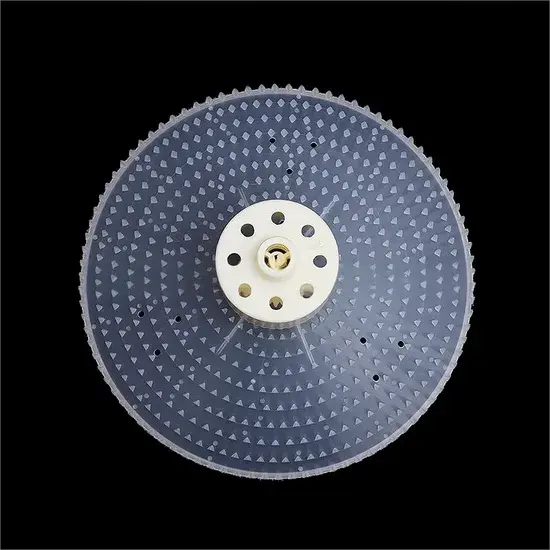

Advantages of using the spiral-mixing aerator:
1. The ventilation range of the spiral-mixing aerator is larger than that of the rubber membrane. If the air supply needs to be increased, simply adding more aerators will suffice, and unlike the rubber membrane, the membrane will not easily burst when the air volume increases, nor will its lifespan be shortened.
2. The spiral-mixing aerator is generally made of polypropylene and ABS materials, and there are no problems such as aging and cracking of rubber, or a decrease in elasticity over time.
3. In summary, from the aspects of service life, clogging, and anti-aging, the spiral-mixing aerator is a relatively ideal aeration device. Installing this aerator for users can provide a one-time solution, and the overall service life is much higher than that of the rubber membrane aerator.





Company profile:
Yixing Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, China, known as the “Hometown of Environmental Protection”. Specializing in environmental technology, the company focuses on research and production in eco-friendly fields. We not only provide high-quality products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. With globalization advancing, environmental issues have become increasingly severe, making environmental protection a global consensus. Choosing appropriate environmental protection equipment to achieve optimal environmental governance has become a common challenge for many companies. Shenghe was founded with the mission to serve clients and lead environmental protection initiatives. Our professional production and operation maintenance teams provide you with the best solutions and services.



Frequently Asked Questions:

(1) Q: Can we customize the size?

A:Yes, we can tailor it to your specifications.

(2) Q:What is the delivery timeline for orders?

A:Customized models typically take 30-45 days to ship.

(3) Q:Do you offer overseas after-sales support?

A:Yes, our professional technicians will visit your company for installation, commissioning, and ongoing maintenance.

(4) Q:How do I place an order?

A:You can contact us via email or phone to get a quote.
