| Model | Size: H*W*D mm (customize) | ||
| PS601750005 | 1700 | 600 | 500 |
| PS801750005 | 1700 | 800 | 500 |
| PS101750005 | 1700 | 1000 | 500 |
| PS601850005 | 1800 | 600 | 500 |
| PS801850005 | 1800 | 800 | 500 |
| PS101850005 | 1800 | 1000 | 500 |
| PS602060005 | 2000 | 600 | 600 |
| PS802060005 | 2000 | 800 | 600 |
| PS102060005 | 2000 | 1000 | 600 |
| PS802080005 | 2000 | 800 | 800 |
| PS102080005 | 2000 | 1000 | 800 |
| PS122060005 | 2000 | 1200 | 600 |
| PS122080005 | 2000 | 1200 | 800 |
| PS802160005 | 2100 | 800 | 600 |
| Welcome to become our customer. For more customization and requirements, please contact us! | |||

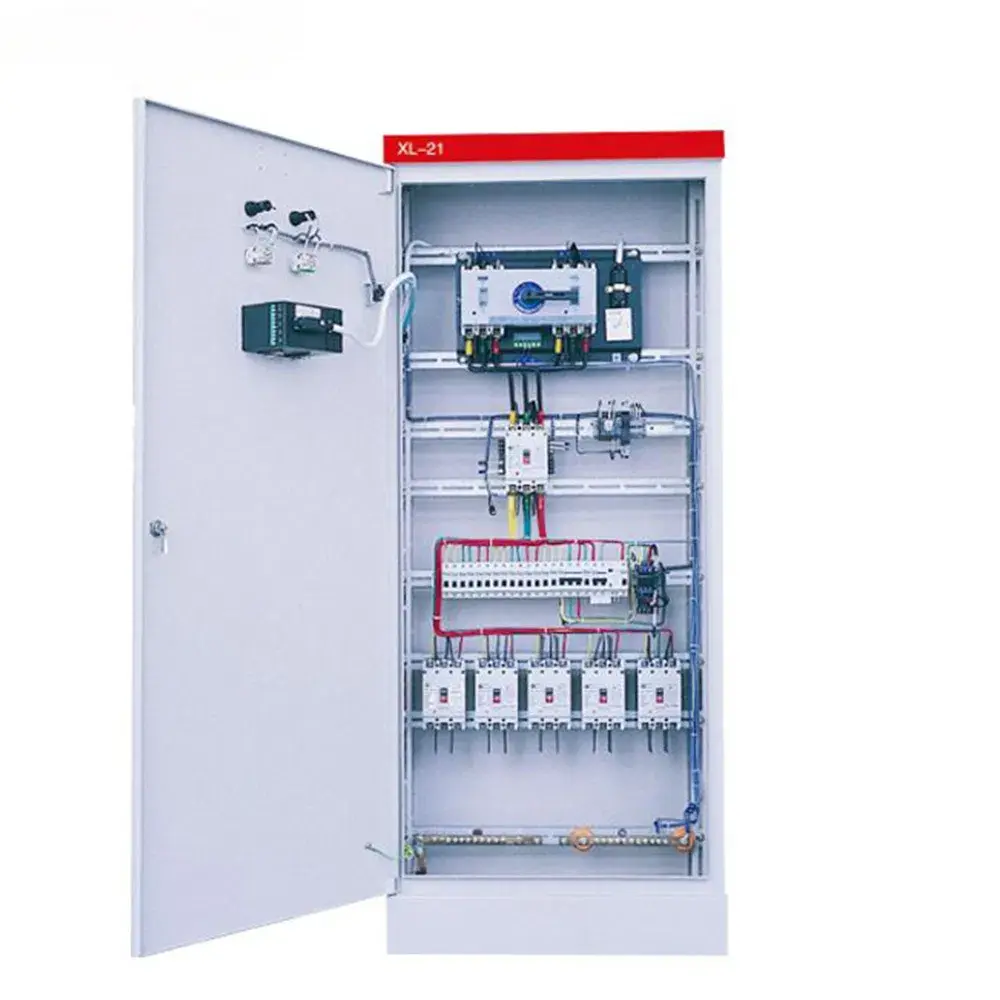

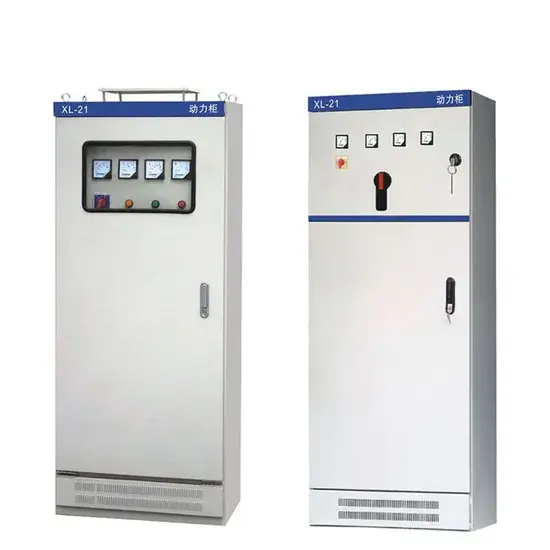

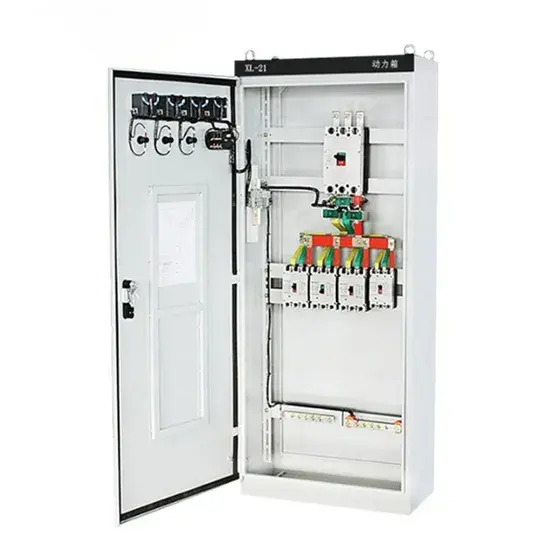

Low voltage power panel
Description:
XL-21X LV closed type power panel can be used in AC 500V or lower system of three-phase three-wire,three-phase four-wire, three-phase five-wire for electricity-generating and mine enterprises, also for power, lighting, distribution. XL-21 type low voltage power panel has flexible distribution scheme, convenient combination, good practical performance, new structure and etc.
| 1. Main electrical performance shall completely comply with regulations of IEC60439-1:1992, GB7251.1-1997. |
| 2. The auxiliary circuit has functions of local/remote, remote, automatic control and in-site/remote, remote control switch. The contractor can adopt DC protection. |
| 3. Receiving the main switch has optional protection of instart trip and pyromagnetic trip. Can cancel instant protection for matching next class main-switch, avoid skip-class tripping, and has functions of motor/manual operation and automatic switch. |
| 4. Main switch of the feeding circuit has the protection of instant trip and pyromagnetic trip. Can add fault protection if customer required |
| 5. The motor control circuit has the protection of short-circuit instant. overload, Undervoltage release and phase-break. |
| 6. Ammeter and voltage meter for the incoming circuit. |
| No. | Item | Unit | Date |
| 1 | Main circuit rated voltage | V | AD:400 |
| 2 | Auxiliary circuit rated voltage | V | AC:220,380 |
| 3 | Rated frequency | Hz | 50/60 |
| 4 | Rated insulation voltage | V | 660 |
| 5 | Rated current | A | W1250 |
| 1. Altitude: <2000m |
| 2. The indoor environment shall be non-ash, non-corrosion gas, and rainwater-proof |
| 3. Ambient temperature:-25ºC-+40ºC, the measured average temp. in 24 hours: 35ºC; the temp. under storage and transportation condition:-25ºC-+55ºC, the temp. in short time <70ºC |
| 4. Relative humidity under the highest temp. of 40ºC:<50% |
| 5. No vibration and the oblique mounting angle: <5ºC |
