| Brand | Model | Cubage | Dimension(m) | Material(Material is optional) | Operation mode | ||||
| Liter | Diameter | H | PE | PP | PVC | Carbon steel | |||
| YH | YHDM-1 | 100 | 0.45 | 0.72 | √ | √ | √ | √ | Auto |
| YHDM-2 | 200 | 0.58 | 0.95 | √ | √ | √ | √ | Auto | |
| YHDM-3 | 300 | 0.62 | 0.96 | √ | √ | √ | √ | Auto | |
| YHDM-5 | 500 | 0.78 | 1.1 | √ | √ | √ | √ | Auto | |
| YHDM-10 | 1000 | 1.05 | 1.25 | √ | √ | √ | √ | Auto | |
| YHDM-15 | 1500 | 1.2 | 1.45 | √ | √ | √ | √ | Auto | |
| YHDM-20 | 2000 | 1.3 | 1.6 | √ | √ | √ | √ | Auto | |

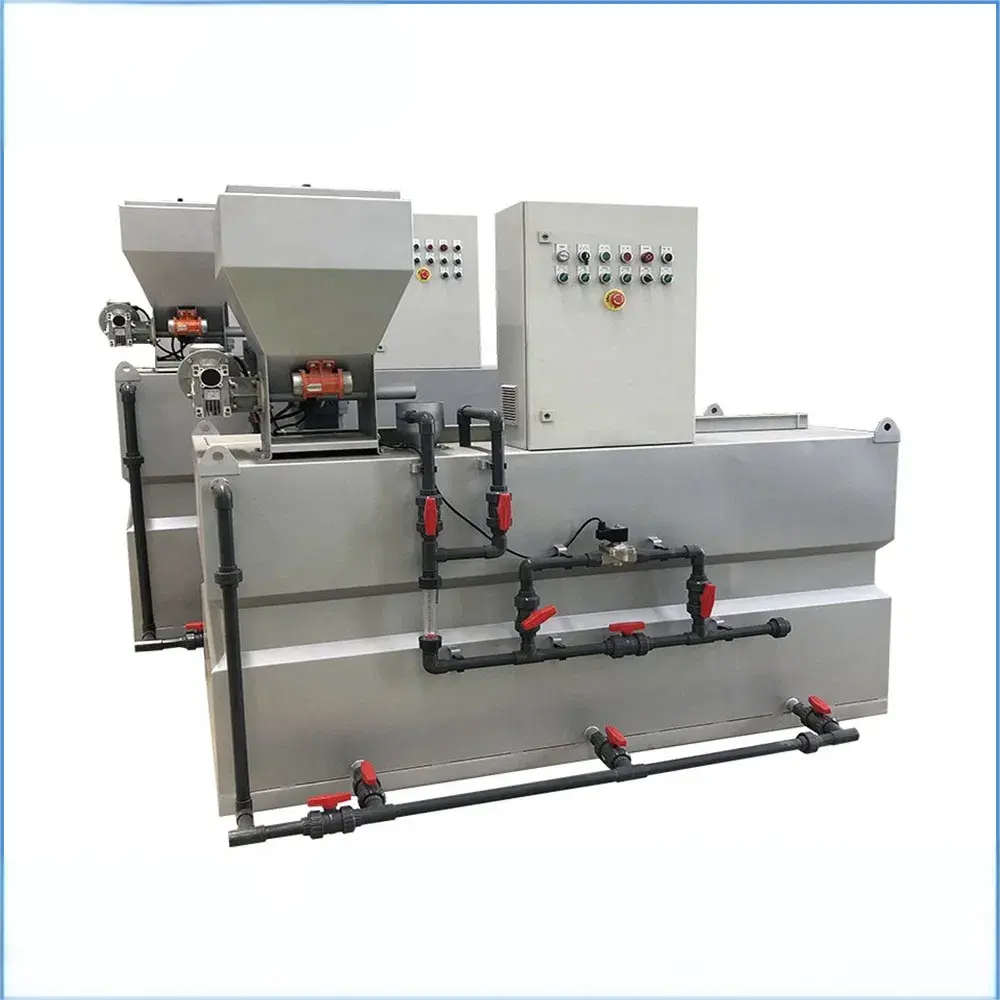

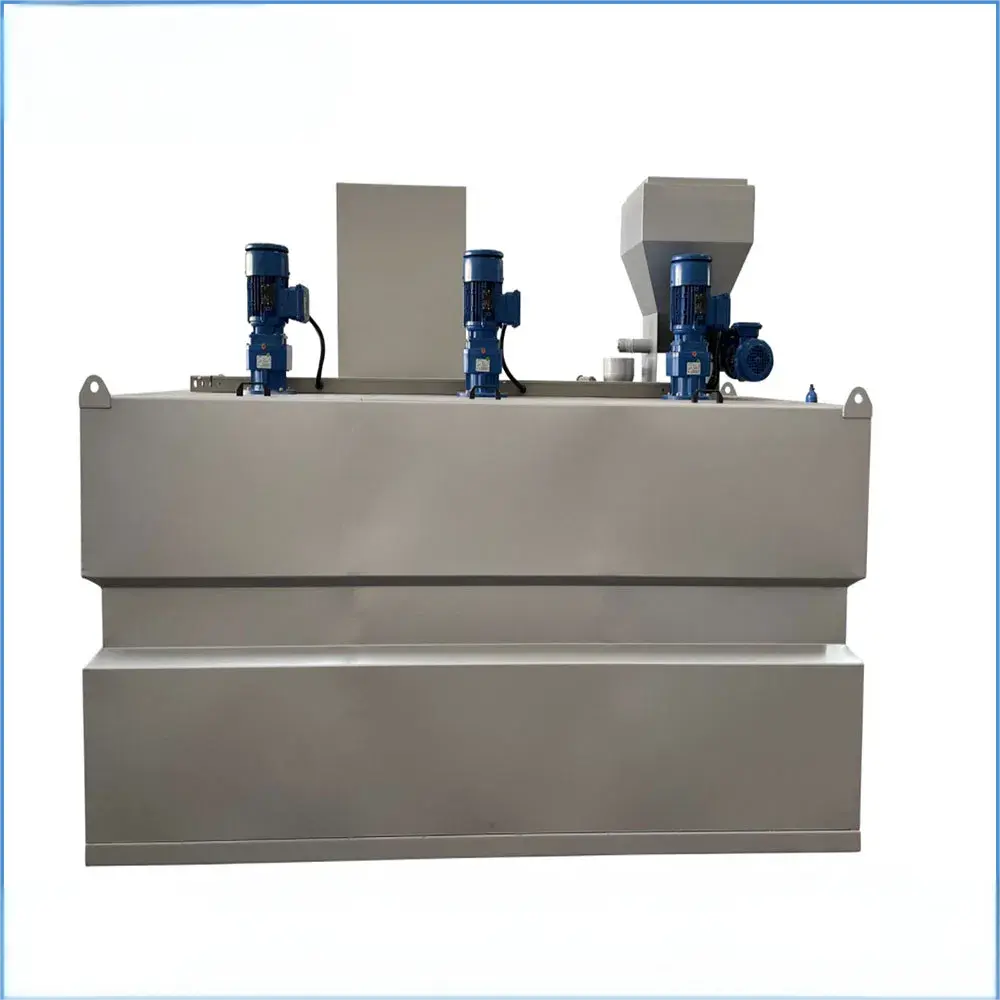

GSJY series dosing equipment is specially used for dosing water treatment agents such as water stabilizer, coagulant and disinfectant. The equipment has the characteristics of compact structure, convenient installation and operation, stable performance and so on. And low energy consumption, corrosion resistance, low noise.
Working principle: Automatic dosing device through online detection system, automatic dosing system to control the operation of the circulating water system, in order to achieve effective and timely operation, and the field operation data stored in the built-in report system, in order to facilitate the failure of equipment to find the cause.
