Product Parameters
| Model | Power | Water flow volume (m3/h) | Screen Width (B1) | Channel Width (B) | ||||
| 1mm | 3mm | 5mm | 10mm | 15mm | ||||
| HY-300 | 0.37KW | 150 | 300 | 450 | 460 | 460 | 300 | 400 |
| HY-400 | 170 | 340 | 420 | 510 | 540 | 400 | 500 | |
| HY-500 | 0.55KW | 240 | 480 | 590 | 730 | 750 | 500 | 600 |
| HY-600 | 308 | 620 | 764 | 920 | 960 | 600 | 700 | |
| HY-700 | 360 | 720 | 930 | 1124 | 1160 | 700 | 800 | |
| HY-800 | 0.75KW | 440 | 880 | 1080 | 1330 | 1420 | 800 | 900 |
| HY-900 | 550 | 1024 | 1250 | 1450 | 1580 | 900 | 1000 | |
| HY-1000 | 580 | 1160 | 1450 | 1760 | 1830 | 1000 | 1100 | |
| HY-1100 | 1.1KW | 650 | 1310 | 1670 | 2000 | 2080 | 1100 | 1200 |
| HY-1200 | 710 | 1470 | 1750 | 2080 | 2250 | 1200 | 1300 | |
| HY-1300 | 1.5KW | 780 | 1560 | 1820 | 2160 | 2310 | 1300 | 1400 |

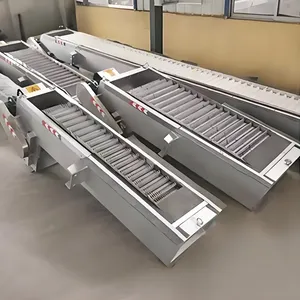

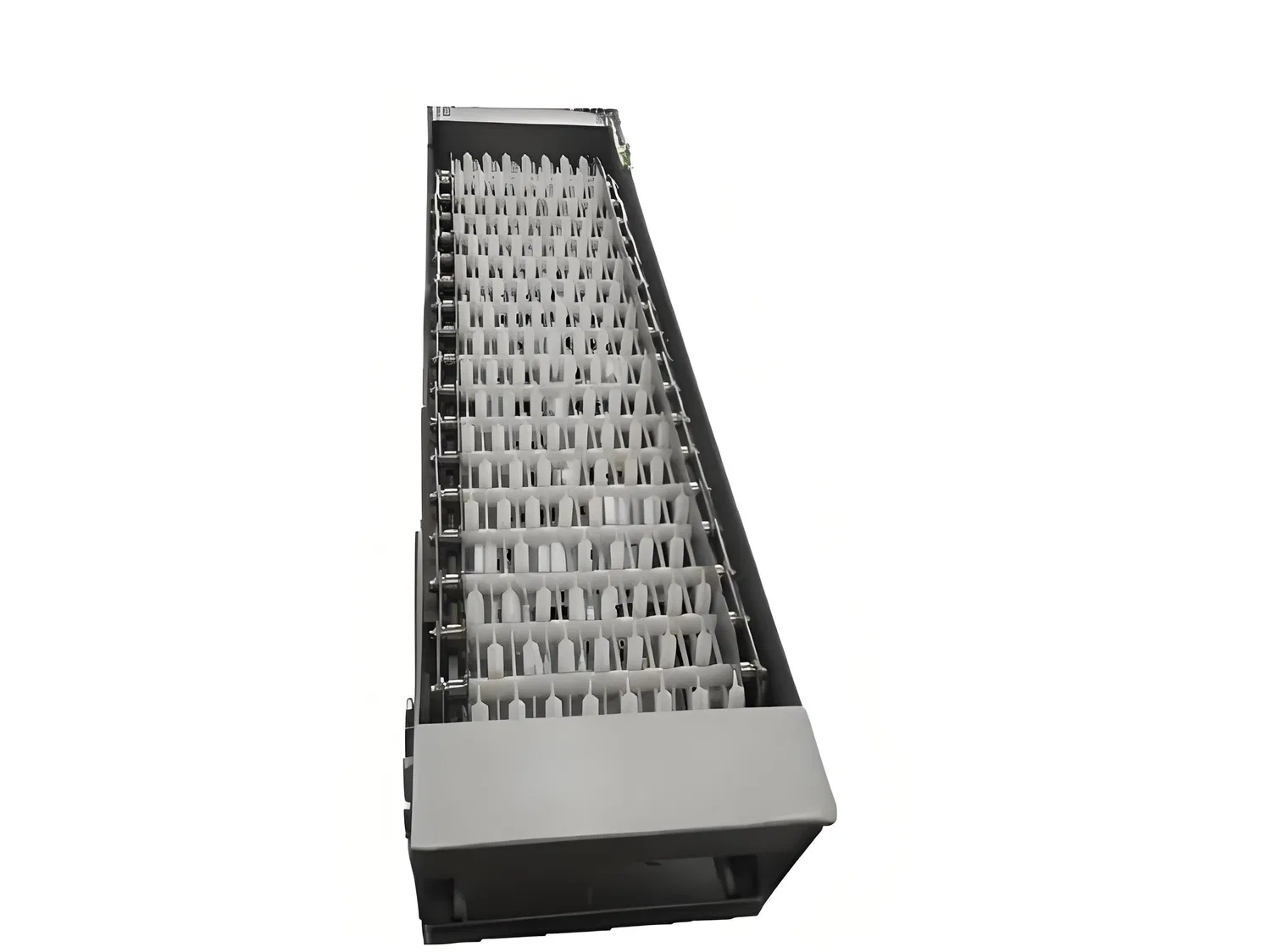

This unit adopts rotary type, several plow-shaped rake will be installed on the shaft,forming rake chains. According to the water flow volume, the bar screen will have different spaces or gaps installed on the front of the pump station or water treatment system. When the drive mechanism move from bottom to top with rake chains. The debris will be taken out from the rake chains, while the liquid will flow through screen gap. When the unit rotates into the top, the rake chain will revert its running direction, moving from top to bottom. The matters will fall off from the rake chains. When the rake rotates into the bottom from the opposite side. Then it will re-start for continuous running.
Paper-making industry–recycling of fiber, removing solids
Tannery wastewater– removing of feather, oil and grease
Municipal sewage treatment Abattoirs Cheese processing Container washing Dairies
Municipal wastewater — removing fur, debris
Alcohol plant, starch factory –removal of solid substances such as vegetable fibre, hulls, groceries,etc
Food processing Fish processing Metal remove Meat industry Poultry processing
Small goods Tanneries Vegetable industries
Main parts packed with plastic bags, and electrical parts packed by high quality wooden box.
