Product Overview:

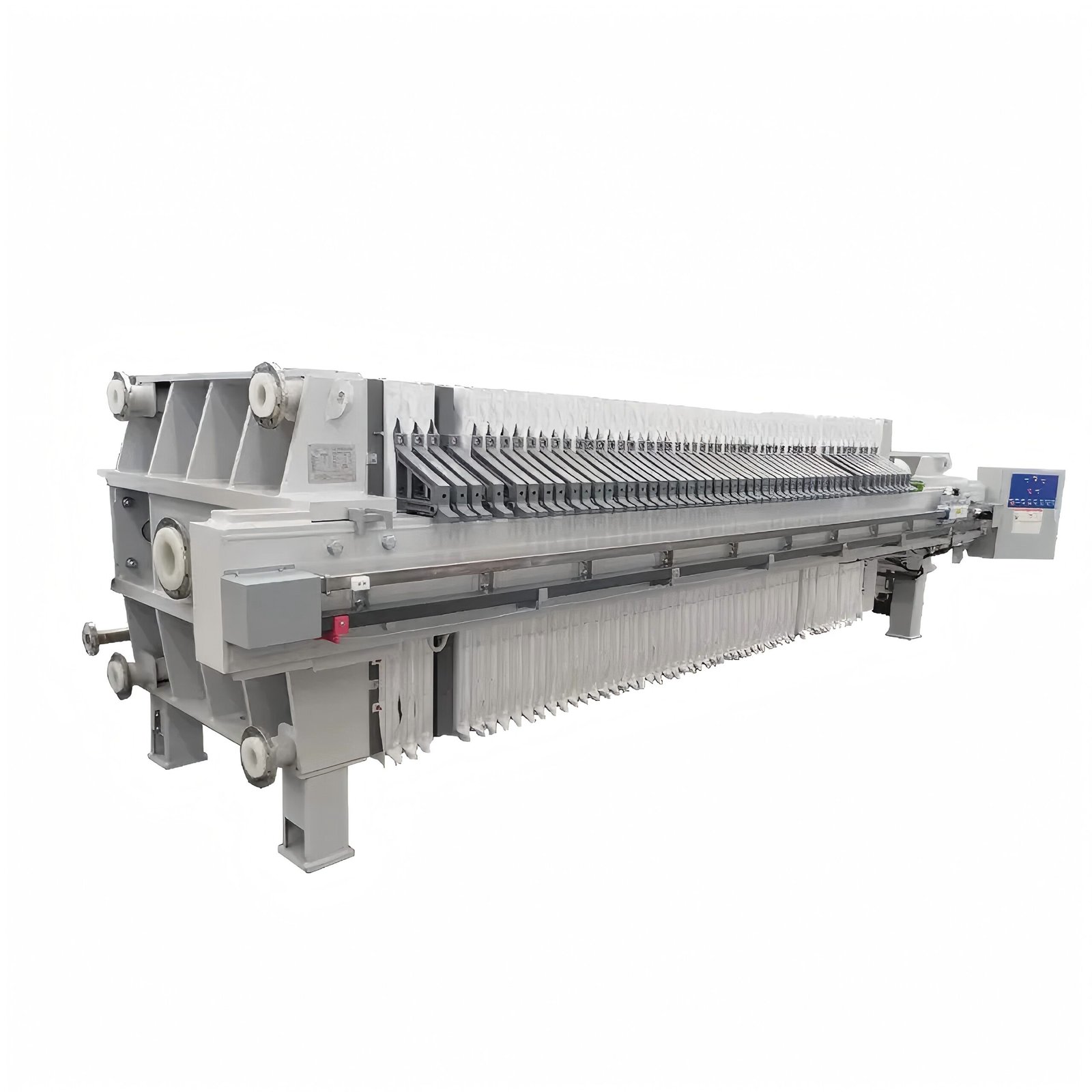

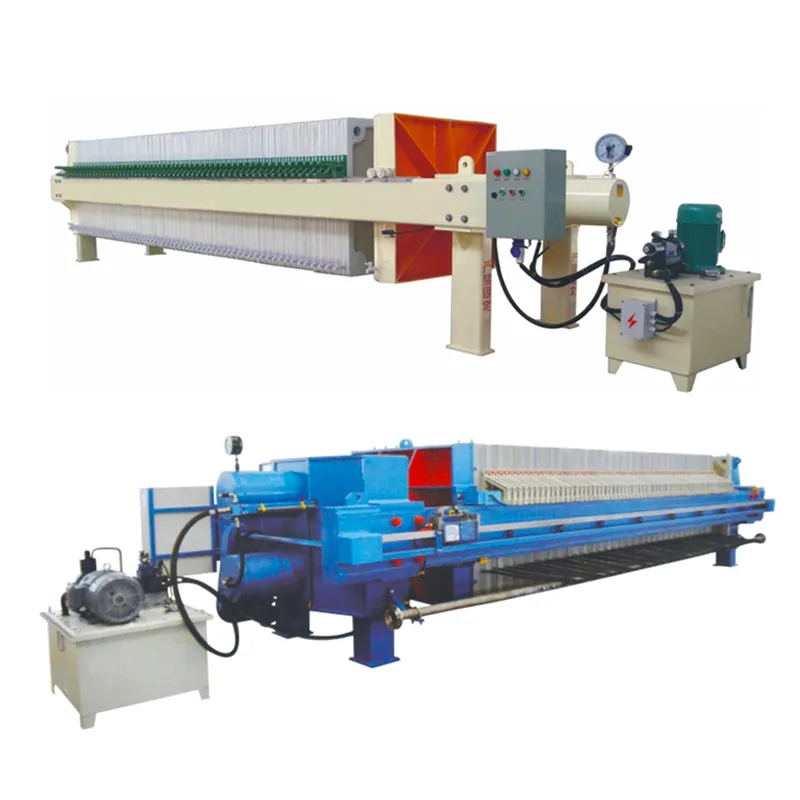

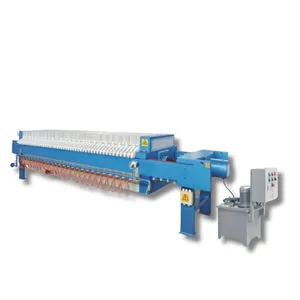

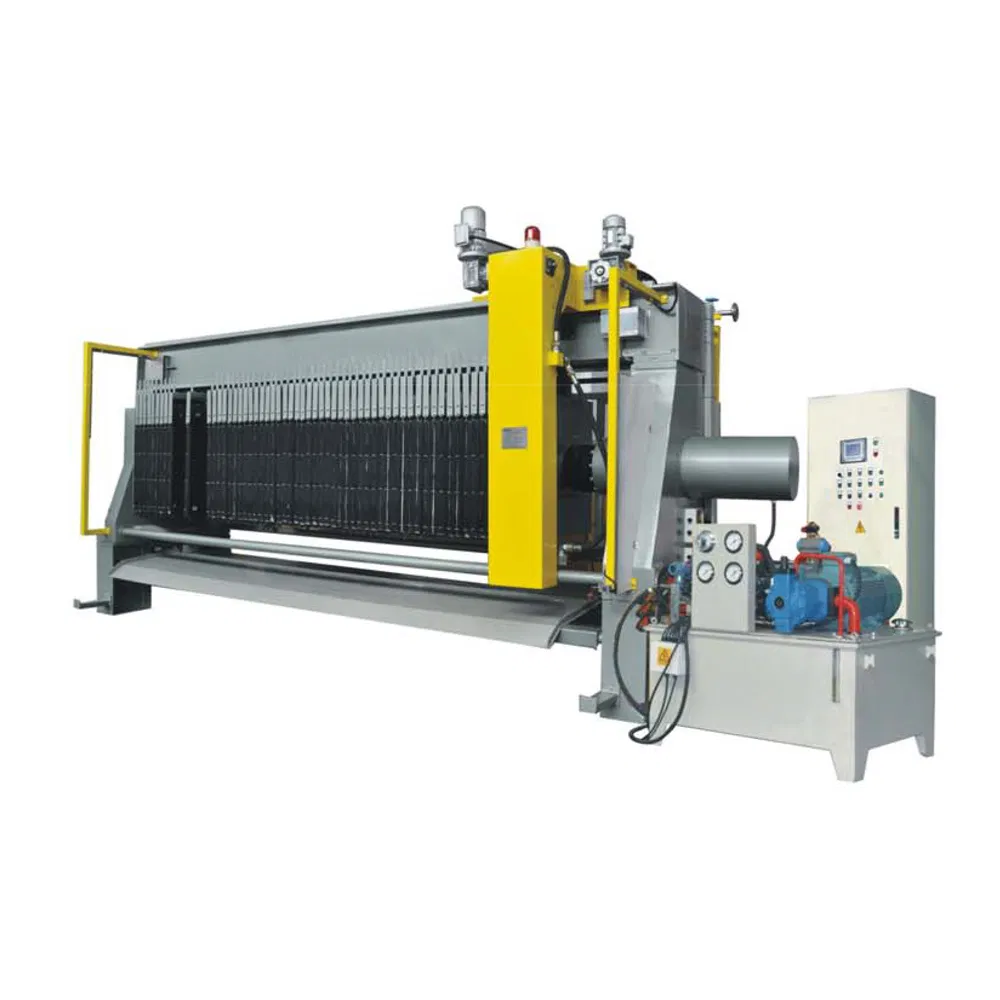

Shenghe Company’s plate and frame filter press consists of a pressing section, thrust plates, pressing plates, and cross beams, forming an intermittent pressurized filtration system. This equipment features parallel alternating arrangement of filter plates and frames with liquid channels, each group sandwiched between filter cloth. The pressing end tightly secures the filter plates and frames, creating individual filtration chambers between them.

Application Scope:

chemical industry, dye, petroleum, ceramics, pharmaceutical, sugar, starch, paint, metallurgy and sewage treatment.

Key Features:

The plate and frame filter press is suitable for suspensions with highly compressible or nearly incompressible filter residues. It typically operates on solid particle concentrations below 10%, with working pressures ranging from 0.3 to 1.6 MPa, and can reach up to 3 MPa under special conditions. The filtration area can be adjusted by modifying the number of plates and frames. The plates are square-shaped, with filter frames measuring 200-2000 mm in inner side length and 16-80 mm in thickness, providing a total filtration area of 1-1200 ㎡m². The plates and frames are secured using manual, electric screw, or hydraulic compression systems. These components are manufactured from materials including wood, cast iron, cast steel, stainless steel, polypropylene, and rubber.

Company Profile:

Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, which is known as the “Hometown of Environmental Protection” and located on the shore of Taihu Lake. The company focuses on the field of environmental protection technology and is committed to the research and development and production of eco-friendly products. Our main products include water treatment equipment such as reverse osmosis devices, sludge dewatering machines, mechanical screens, aerators, automatic dosing systems, as well as electrical control cabinets, fillers, and activated carbon. We not only produce high-quality and stable products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. The mission of Shenghe Environmental Protection is to serve customers and lead the environmental protection industry. Our professional production and operation maintenance team provides you with the best solutions and services.

FAQ:

Q: Can you customize products?

A: Yes, we customize machines according to client requirements.

Q: Where is your factory located?

A: In Yixing City, very close to Shanghai-a 2-hour drive.

Q: Do you provide after-sales service?

A: Yes, our engineers offer technical support.

Q: What’s your warranty period?

A: One year after delivery.

Q: What’s your delivery timeline?

A: Typically within 45 days after advance payment.

Q: How do you package exported products?

A: We usually use preservative-treated wooden crates.

Q: What payment methods do you accept?

A: Typically wire transfers or letters of credit.

Q: What shipping options do you provide?

A: Customers decide the transportation method-air freight, express delivery, or sea freight.
