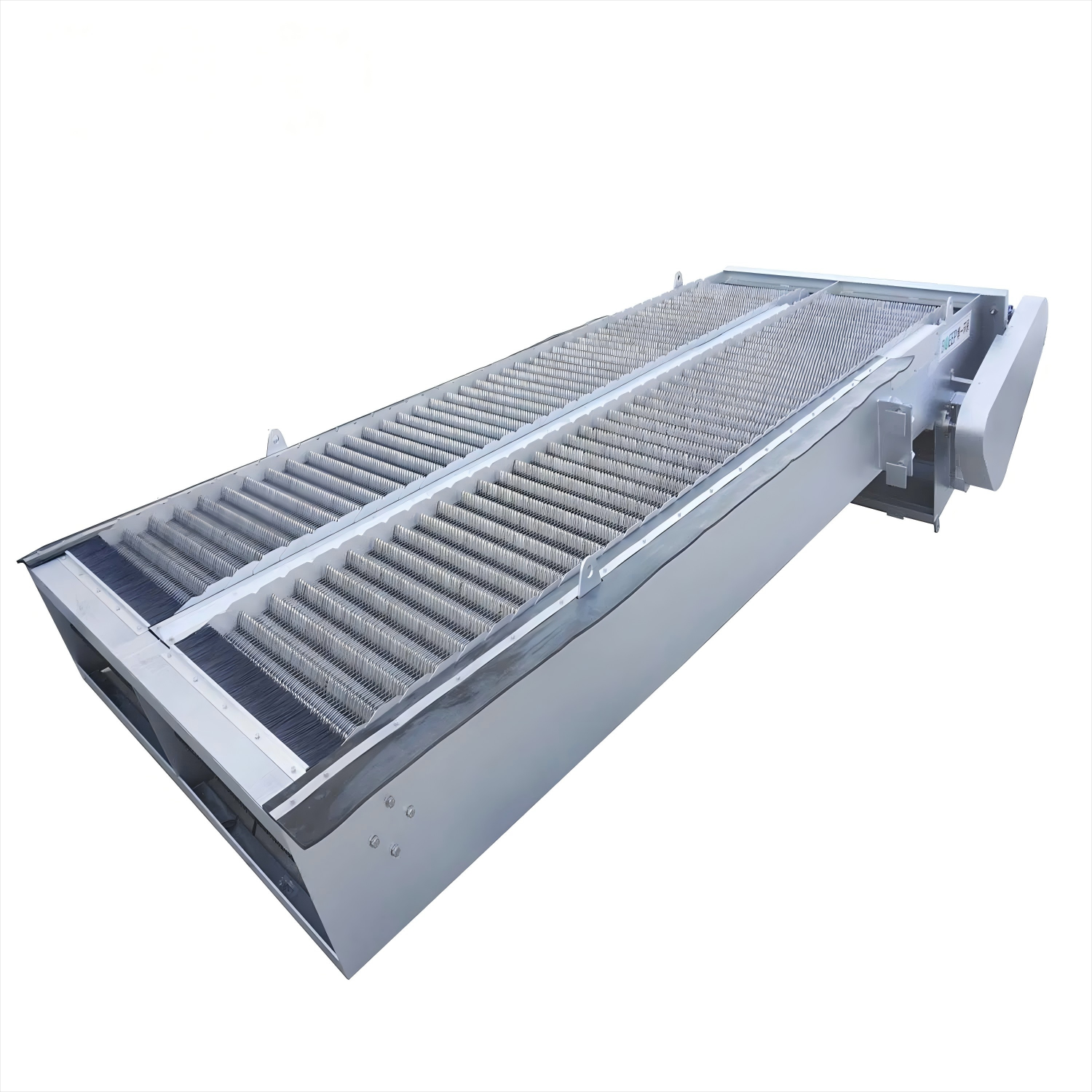

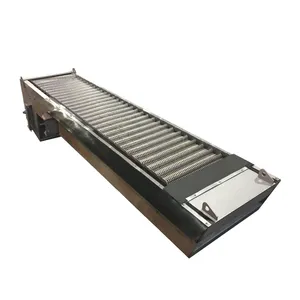

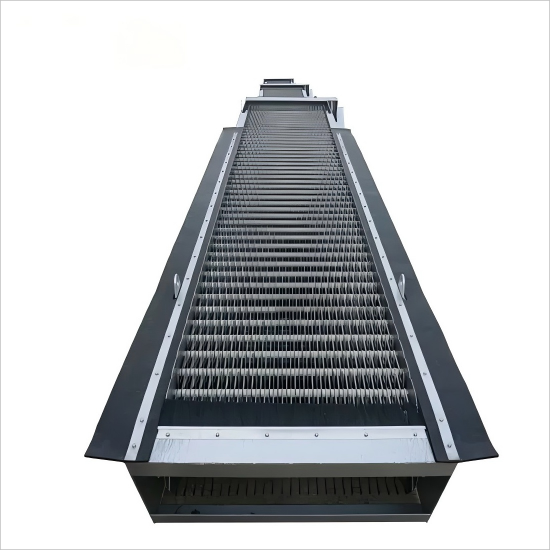

Reciprocating Rake Bar Screen Parameter:
The product can be customized in size according to your requirements.
| Model | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2100 | 2500 | 3000 |
| Width (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2100 | 2500 | 3000 |
| Rake speed(m/min) | 2.5~3.0 | |||||||||
| Passing speed(m/min) | 0.8~1.2 | |||||||||
| Motor(kW) | 0.55~3.0 | |||||||||
| Teeth Pitch(mm) | 3,5,8,10,20,25,30(can be customized) | |||||||||
| Installation Angle(°) | 60,65,70,75(can be customized) | |||||||||
| Channel width (mm) | 700 | 900 | 1100 | 1300 | 1500 | 1700 | 1900 | 2200 | 2600 | 3100 |
| Channel depth (mm) | ≤9000 | |||||||||
| Channel length (mm) | ≥300+500 | |||||||||
| Disposal height(mm) | 1000(can be customized) | |||||||||
Product Description:
This equipment features fully automated control that ensures continuous operation even without human supervision. When material jams occur, the system immediately triggers an alarm and automatically halts the process. The electrical overload protection device employs a thermal relay design, which automatically stops the equipment and issues warnings when faults or overloads are detected.
The device is sensitive and reliable. The main frame adopts integrated design, and the structure is safe and reasonable. The tooth surface is equipped with convex stripe design, which can effectively prevent deformation caused by insufficient strength, completely remove dirt, and ensure flexible and reliable operation.
The device can respond accurately and effectively avoid the motor gearbox damage due to overload. The chain and track form a closed state, which can effectively prevent the material from falling into the track and avoid the phenomenon of material jam.The equipment structure is compact and stable, operation is convenient, automatic cleaning design.
Please provide details so that we can recommend the right model for you:
1. Voltage and frequency 2. Channel depth 3. Screen width 4. Discharge height 5. Flow rate per hour 6. Screen groove 7. Stainless steel or low carbon steel 8. Type of wastewater.
Product Superiority:
• High degree of automation: can work continuously for a long time without any manual help.
• High work efficiency, low energy consumption, no noise, corrosion resistance.
• Safe and reliable: when overloaded, it will sound an alarm and stop running automatically.
• Flexible and convenient: can work flexibly according to different Settings; support autonomous control and manual control.
• It has self-cleaning function.
• Can be customized according to customer requirements.
Company Profile:
Shenghe Environmental Protection Co., Ltd. is headquartered in Yixing City, Jiangsu Province, which is known as the “Hometown of Environmental Protection” and located on the shore of Taihu Lake. The company focuses on the field of environmental protection technology and is committed to the research and development and production of eco-friendly products. Our main products include water treatment equipment such as reverse osmosis devices, sludge dewatering machines, mechanical screens, aerators, automatic dosing systems, as well as electrical control cabinets, fillers, and activated carbon. We not only produce high-quality and stable products but also offer comprehensive after-sales services including equipment installation, commissioning, operation, and maintenance. The mission of Shenghe Environmental Protection is to serve customers and lead the environmental protection industry. Our professional production and operation maintenance team provides you with the best solutions and services.
FAQ:
Q: Can you customize products?
A: Yes, we customize machines according to client requirements.
Q: Where is your factory located?
A: In Yixing City, very close to Shanghai-a 2-hour drive.
Q: Do you provide after-sales service?
A: Yes, our engineers offer technical support.
Q: What’s your warranty period?
A: One year after delivery.
Q: What’s your delivery timeline?
A: Typically within 45 days after advance payment.
Q: How do you package exported products?
A: We usually use preservative-treated wooden crates.
Q: What payment methods do you accept?
A: Typically wire transfers or letters of credit.
Q: What shipping options do you provide?
A: Customers decide the transportation method-air freight, express delivery, or sea freight.
