Step Screen Vs Bar Screen. Let’s take a closer look at them. These two are two key equipment used in solid-liquid separation, especially in livestock manure treatment, but their working principles, structures, application scenarios and advantages and disadvantages are significantly different.

• Bar screen: a static, passive filtration device that relies on the gravity or pressure of the liquid to separate through the gaps.

1.Working process:

Waste or wastewater is evenly distributed across the stationary bar screen surface through feed ports. Under gravity, liquid components pass through gaps between the screen bars into the collection basin or drainage ditch below. Solid fibers and residues are retained by the screen bars, gradually accumulating on the surface. After prolonged operation (e.g., several hours or half a day), feeding must be stopped. The accumulated solids should then be scraped off using scrapers or other tools to ensure complete cleaning before resuming operations.

2.Strong point:

The structure is extremely simple and reliable. The energy consumption is very low (even zero). The procurement and maintenance costs are low.

3.Weak point:

Intermittent operation, unable to work continuously, low degree of automation, manual cleaning is required. Easy to clog, especially in high solid content or long fiber substances. Low processing efficiency, not suitable for large-scale modern farms or sewage treatment plants.

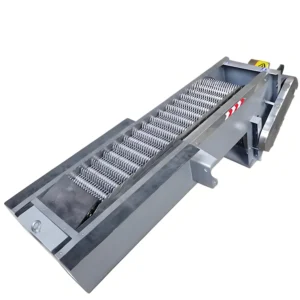

• Step screen: a dynamic, active screening system that pushes solids forward mechanically while separating liquids.

1. Working process:

The material is fed through the feed pipe to the screen plates at the front of the screening machine. When the motor starts, it drives the screen plates via a gearbox and linkage mechanism, creating a stepping motion (resembling a “walking” action). During this process, the screen plates continuously and slowly push the solid material backward. Throughout this movement, liquid is continuously separated through the screen gaps. The dehydrated dry material is then automatically discharged from the equipment’s outlet, ready for direct loading or further processing. The separated liquid is directed to subsequent treatment stages such as anaerobic fermentation or sedimentation.

2.Strong point:

Fully automatic continuous operation, no need to stop cleaning, greatly save manpower. High and stable separation efficiency, always maintain a fresh screen for separation, not easy to block. High dehydration rate, output solid moisture content is low.

3.Weak point:

The structure is complex, the manufacturing cost is high. It needs to consume electricity. The equipment investment and maintenance cost are high.

Summary and selection suggestions:

The case for bar screens: If your project has a limited budget, small processing capacity, can tolerate intermittent manual operation, and is primarily used for preliminary solid/liquid separation, then bar screens are an economical and practical choice.

The case of choosing a step screen: If your project requires automation, high efficiency, and continuous production (e.g., large modern farms, centralized sewage treatment centers), handles large volumes with high solid content, and is willing to invest more upfront in higher production efficiency and lower labor costs, then stepping screens are the undisputed better choice.

Simply put, the bar screen is the “economical manual version”, while the step screen is the “high efficiency automatic version”. In modern large-scale and intensive environmental protection projects, the application of step screen is more and more widespread.
