| Model Number | DS handling capacity (KG/H) 10000mg/L≤ss≤20000mg/L |
External Dimension L(mm)×W(mm)×H(mm) | Net Weight(kg) | Operation Weight(kg) |
| PJXDL131 | 7-14 | 1870× 730× 1065 | 250 | 395 |
| PJXDL132 | 14-28 | 2000× 960× 1070 | 420 | 540 |
| PJXDL251 | 15-30 | 2690× 880× 1500 | 550 | 660 |
| PJXDL252 | 30-60 | 2810× 1120× 1500 | 550 | 660 |
| PJXDL301 | 35-70 | 3310× 1000×1700 | 900 | 1300 |
| PJXDL302 | 70-140 | 3460× 1270×1700 | 1350 | 2000 |
| PJXDL303 | 105-210 | 3630× 1620× 1700 | 1900 | 2700 |
| PJXDL304 | 140-280 | 3960× 2040× 1750 | 2500 | 3600 |
| PJXDL351 | 60-120 | 3610× 1100× 1850 | 1100 | 2000 |
| PJXDL352 | 120-240 | 3820×1410×1850 | 2100 | 3250 |
| PJXDL353 | 180-360 | 4120×1770×1850 | 3100 | 4600 |
| PJXDL354 | 240-480 | 4320× 2290× 1850 | 4100 | 5700 |
| PJXDL401 | 80-160 | 4550×1160×2250 | 2200 | 4200 |
| PJXDL402 | 160-320 | 4870×1680×2250 | 3500 | 6000 |
| PJXDL403 | 240-480 | 4790×2550×2250 | 5500 | 8000 |
| PJXDL404 | 320-640 | 4840×3120×2250 | 7000 | 9500 |

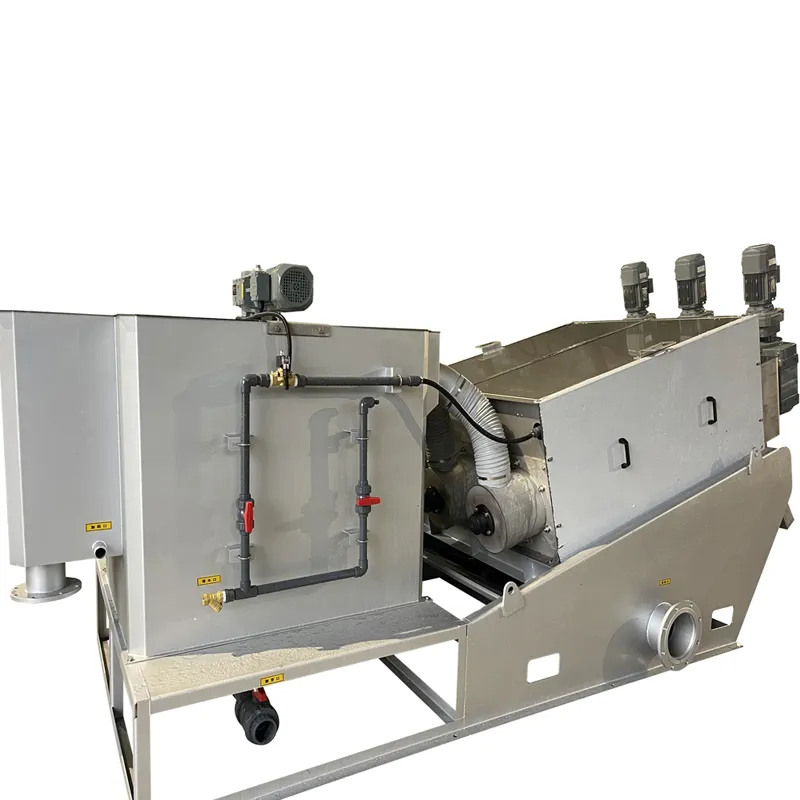

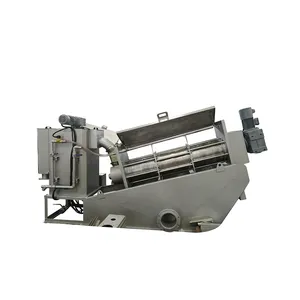

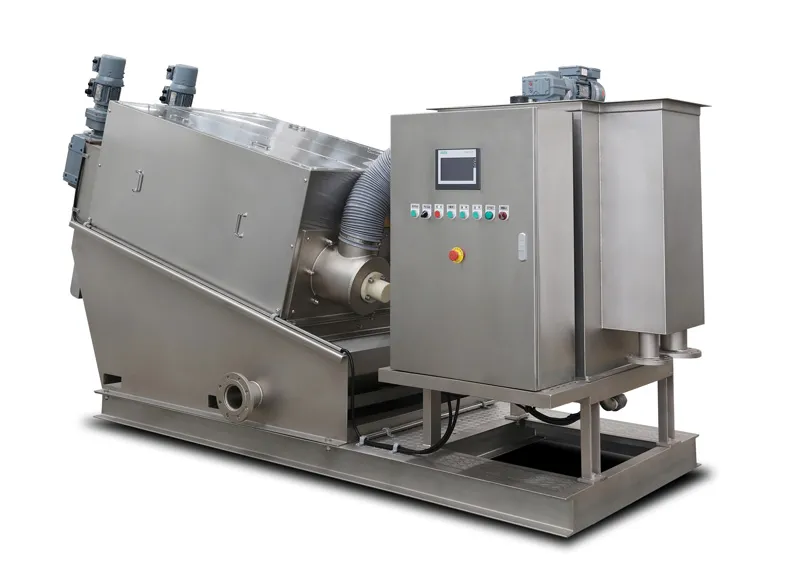

automatic Screw type Press spiral Wastewater Treatment Sludge Dewatering Machine
The main body of press filter sludge dewatering machine is made of multiple fixed annular plates and moveable annular plates with the screw shaft running through it. The front part is concentrating section and the ending part is dewatering section. It can concentrate and dewater sludge in one chamber. Sludge will be transported to the dewatering part after being concentrated in the thickening section.In the advancing process, great pressure has been produced because of the gradually decreasing filter spacing and screw distance with the block of the back platen. Then the volume decreases continuously, and the purpose of fully dewatering will be achieved.
Advantages of our products
•Low energy consumption.
•Minimal water consumption.
•Minimal noise.
•Low polymer consumption.
•No need for proceeding sludge thickening.
•Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
•Minimal maintenance and operational cost.
•Capable for working 24/7.
