Rotary Drum Grille for Wastewater Treatment Rotary Drum Filter Sewage Treatment Equipment

Rotary Drum Grille for Wastewater Treatment Rotary Drum Filter Sewage Treatment Equipment

Model			DYZG-600	DYZG-800	DYZG-1000	DYZG-1200	DYZG-1400	DYZG-1600	DYZG-1800	DYZG-2000
Drum diameter(mm)			600	800	1000	1200	1400	1600	1800	2000
Standard grid length(mm)			650	850	1000	1200	1400	1500	1650	1850
Outer diameter of delivery pipe(mm)			159	219	219	273	273	325	325	325
Highest water level in front of the gate H3(mm)			400	520	670	820	950	1100	1250	1350
Standard Installation Angle			35°
Depth of Regular Channels H2			600 -800	700 -1000	900 -1200	1100 -1400	1200 -1600	1400 -1800	1600 -2000	1800 -2100
Standard slag discharge height H1(mm)			1000
Minimum Installation Length A(mm)			3000	3300	3600	4000	4300	4700	5000	5300
Maximum Overflow Discharge Estimation m³/h	Grating Gap	0.5	80	135	235	315	450	585	745	920
		1	125	215	370	505	720	950	1205	1495
		2	190	330	555	765	1095	1440	1830	2260
		3	230	400	680	935	1340	1760	2235	2755
		4	235	430	720	1010	1440	2050	2700	3340
		5	250	465	795	1105	1575	2200	2935	3600

Product Details

operating principle

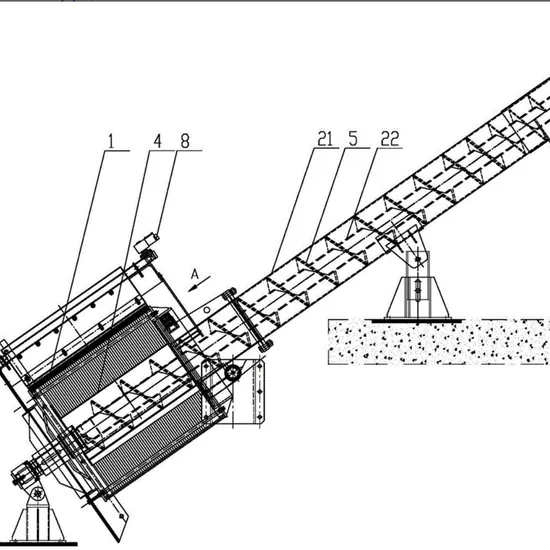

Rotating cleaning mesh drum in the water at 35° Angle to do 5~8r/min per minute circular motion, 1/3 of the mesh drum immersed in water. The sewage and floating matter enter the inner part of the net cylinder from the lower mouth, and the floating matter is attached to the inner wall of the net cylinder from the water, when the net cylinder is turned to the highest point, the impurities fall into the garbage conveying system due to the action of gravity, and are transported and pressed to the discharge port. The filtered sewage flows away through the gap between the mesh drum.
