| Model | Motor Power(KW) | Machine Dimension(mm) | Net Weight(KG) | Operating Weight(KG) | ||||
| screw shaft | blender | total | length | width | height | |||
| GSEP101 | 0.1 | 0.1 | 0.2 | 1816 | 756 | 1040 | 190 | 280 |
| GSEP131 | 0.1 | 0.1 | 0.2 | 1969 | 756 | 1040 | 205 | 300 |
| GSEP132 | 0.2 | 0.1 | 0.3 | 2069 | 910 | 1040 | 275 | 420 |
| GSEP202 | 0.4 | 0.4 | 0.8 | 2500 | 935 | 1270 | 470 | 680 |
| GSEP301 | 0.4 | 0.4 | 0.8 | 3255 | 985 | 1600 | 820 | 1230 |
| GSEP302 | 0.8 | 0.4 | 1.2 | 3455 | 1295 | 1600 | 1350 | 2050 |
| GSEP303 | 1.2 | 0.75 | 1.95 | 3605 | 1690 | 1600 | 1820 | 2810 |
| GSEP352 | 3 | 0.75 | 3.75 | 4140 | 1550 | 2250 | 2450 | 3400 |
| GSEP353 | 4.5 | 1.5 | 6 | 4420 | 2100 | 2250 | 3350 | 4850 |
Product Introduction of volute screw press sludge dewatering machine
TPDL Sludge Dehydrator is a new technology of Sludge Dewatering Machine(Hereinafter referred as TPDL) which belongs to the screw press, can replace the traditional filter press like belt press and frame press. It’s clog-free and can reduce the sedimentation tank and sludge thickening tank, saving the cost of sewage plant construction.
Application of volute screw press sludge dewatering machine
•Municipal & Domestic
•Tannery•Paper & Pulp•Dyeing & Printing•Plastic recycling
•Food & Beverage•Dairy•Agricultural•Slaughter & Farming
•Pharmaceutical & Petrochemical
Advantages of volute screw press sludge dewatering machine
1. Low operation cost: below 40% of belt press and 20% of centrifuge.
2. Power-saving: less than 5% of centrifuge
3. Water-saving: less than 0.1% of belt filter press.
4. Saving drugs: saving around 60%.
5. Compact: saving more than 60% of the investment for dehydration room.
6. Non-clogging: processing the fats & oils and fiber sludge perfectly.

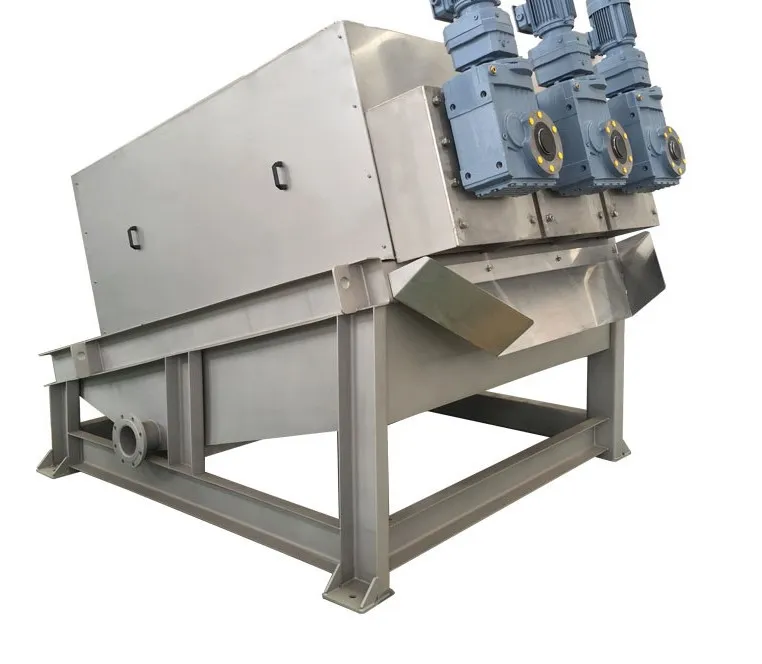

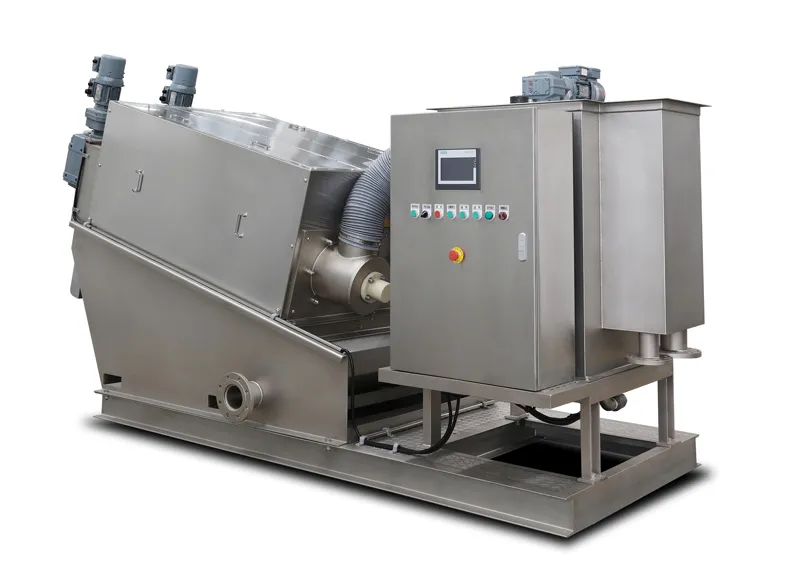

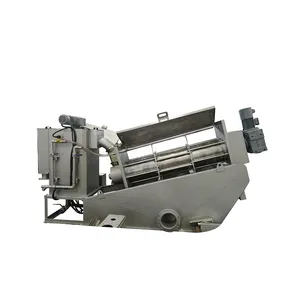

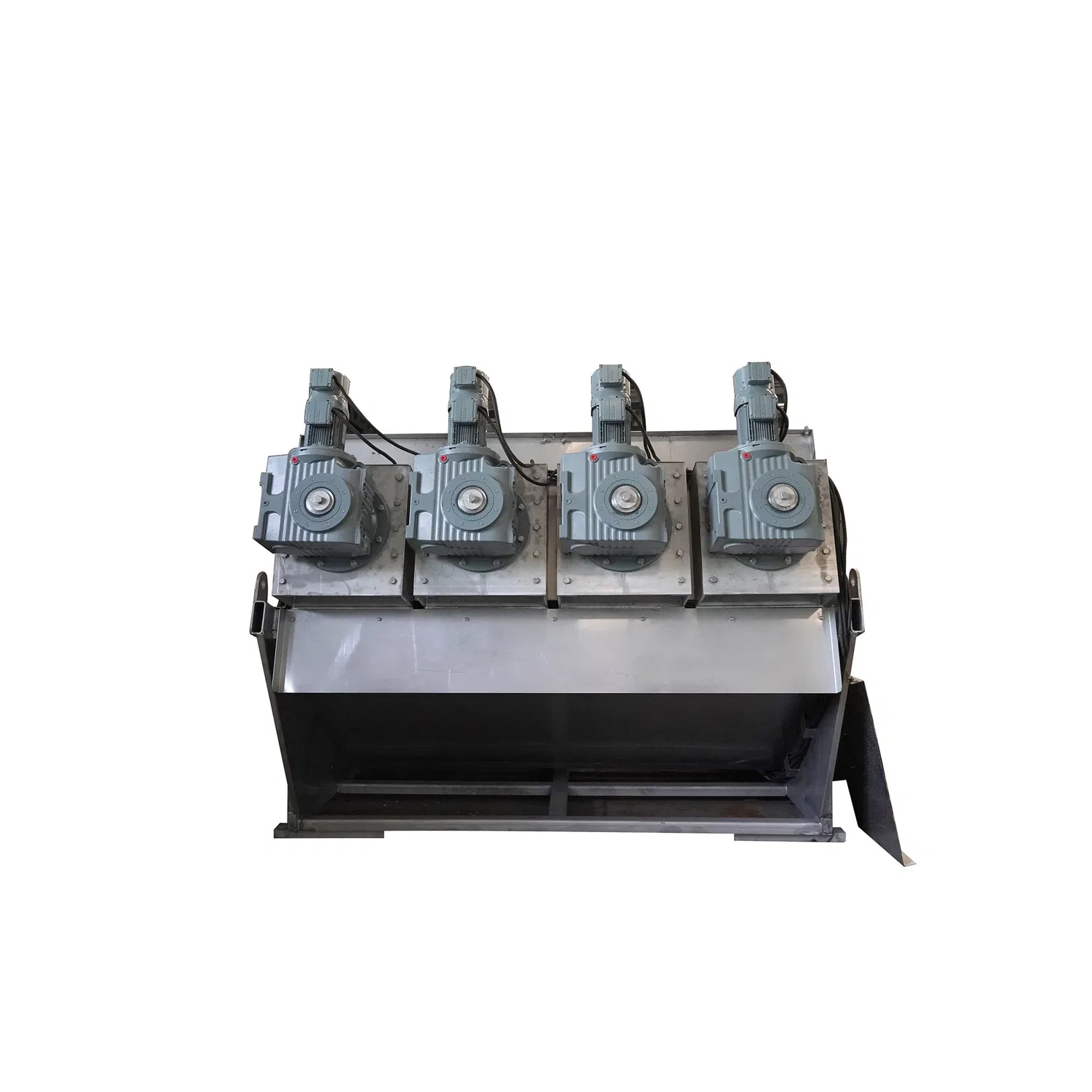

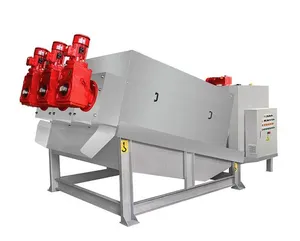

Details of volute screw press sludge dewatering machine
Process flowchart of volute screw press sludge dewatering machine
Packaging & Shipping of volute screw press sludge dewatering machine
Wooden pallet or standard export wooden box as per customers’ requirement.
Cases of volute screw press sludge dewatering machine
