Wastewater Sludge Automatic Dewatering Plate Frame Membrane Belt Filter Press Machine

Wastewater Sludge Automatic Dewatering Plate Frame Membrane Belt Filter Press Machine

Model		HYBFP1000	HYBFP1500	HYBFP2000	Remark
Belt Width (mm)		1000	1500	2000	—–
Treating Capacity (m³/h) Inlet Consistency (S.S1-5%)		12.5-15	20-25	30-35	Depends on Sludge Category
Dried Sludge (kg/h)		100-188	160-300	240-450	Depends on Sludge Category
Mud Cake Water Content’s Rate (%)		75-85	75-85	75-85	Depends on Sludge Category
Power Consumption (kw)	Driving Motor (frequency control)	0.37	0.75	0.75	—–
	Disposal Agitator Motor	0.37	0.55	0.75	—–
	Drum thickener	0.75	0.75	1.1	—–
Lower Collecting Tray for Pressed Filtrate		Yes	Yes	No	—–
External Dimensions (mm)	L	4050	4680	5150	Please ask for actual installation size picture before purchasing
	W	1770	2100	2750
	H	2250	2980	3190
Dase Dimension L1*W1(mm)		2100*1300	2440*1720	2715*2420	—–
Dase Dimension L2*W2 (mm)		640*800	740*800	950*1100	—–
Reference Weight (kg)		2000	2850	3500	—–
Customization Accepted

Product Details

Product Introduction

Overview

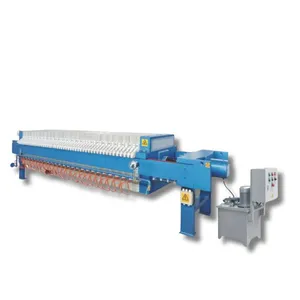

Filter press is divided into plate frame filter press and box filter press, it is an intermittent pressure filter equipment for solid-liquid separation of various suspensions. It relies on a compaction device to compact the filter plate and then uses a material pump to press the suspension material pump into the filter chamber. The filter cloth is used to achieve the purpose of separating solid particles from liquid materials. The structure of the whole machine is simple and the separation effect is good.It is easy to use and has a wide range of applications.It is widely used in coal washing, inorganic salts, mining, alcohol, petroleum, and chemical industry. fuel, metallurgy, medicine, food, textile, printing and dyeing, papermaking, and sewage treatment field.

Product Description

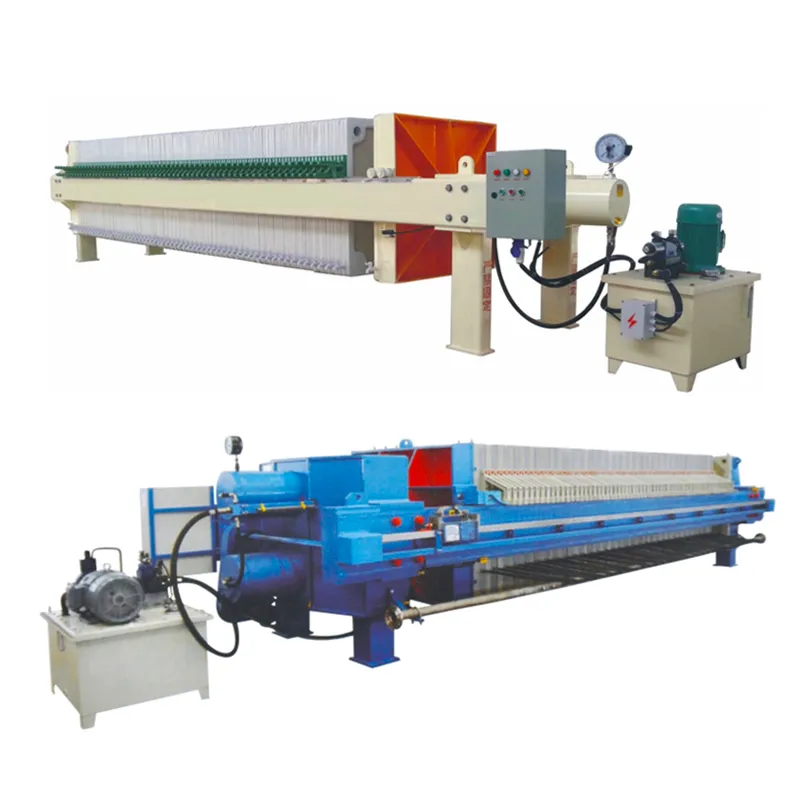

Our company produces various types of box and plate frame mechanical filter presses, hydraulic filter presses, diaphragm filter presses, automatic filter presses, quick-opening filter presses, and filter press accessories, with reliable quality and complete specifications

1. Specifications: Types of 200, 380, 500, 700, 870, 1000, 1250, 1500, 2000, and special-shaped filter plates and presses.

2. The filtering area is up to 2000m

3. Filter plate material: stainless steel, cast iron, rubber, reinforced polypropylene, glass fiber with high-temperature resistance, pp-30 elastomer membrane plate.

4. Liquid flow forms are open flow, dark flow, washable, non-washable, medium feed, corner feed, upper and middle feed, and other forms.

5. Filter plate compąction methods are manual sçrew compaction, electro-mechanical compaction fluid, and hydraulic cylinder compaction. Special requirements of the filter press can be resolved separately.

6. The whole maçhine does not include material infusion pumps
and filter cloths. If necessary supplies can be specified in the contract.

7. According to customers’ special requirements, our company can produce nonstandard models and products suitable for your needs.

8. If technical data changes due to model improvements, the actual size at the time of ordering shall prevail.

Wastewater Sludge Automatic Dewatering Plate Frame Membrane Belt Filter Press Machine

Main Features

1) Simple structure in linear type, easy to install and maintain.
2) Adopting advanced world-famous brand components in pneumatic parts, electric parts, and operation parts.
3) High-pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor, which can be directly inline with the filling machine .

Wastewater Sludge Automatic Dewatering Plate Frame Membrane Belt Filter Press Machine
