Wastewater Treatment Equipment Polymer Chemical Dosing Device

Wastewater Treatment Equipment Polymer Chemical Dosing Device

Model Item		YTH 500	YTH 1000	YTH 1500	YTH 2000	YTH 3000	YTH 4000	YTH 5000	YTH 6000
Capacity (L/h)	Curing for an hour	500	1000	1500	2000	3000	4000	5000	6000
Power(kw)		0.94	2.45	2.45	2.62	4.89	4.89	4.89	4.89
PAM dosage(kg/h)		1~5	2~10		3~15	3.5~20		4.5~25
Water inlet(m³/h)		0.3~1.5	0.6~3	0.9~4	1.2~6	2.0~10	2.4~12	2.4~12	2.4~12
Reference Dimension (mm)	L	1370	2000	2130	2200	2400	2720	2700	2970
	B	680	1000	1070	1200	1300	1400	1500	1600
	H	1485	1770	1810	1970	2270	2355	2222	2322
	L1	1320	1950	2080	2150	2350	2670	2630	2900
	B1	720	1040	1110	1245	1340	1440	1550	1650
	Powder feed port (DN)	DN25	DN32	DN32	DN32	DN40	DN40	DN40	DN40
	Water inlet port (DN1)	DN25	DN32	DN32	DN32	DN50	DN50	DN50	DN50
	Overflow port (DN2)	DN32	DN40	DN40	DN40	DN40	DN40	DN40	DN40
	Vent port (DN3)	DN25	DN32	DN32	DN32	DN40	DN40	DN40	DN40
N.W.(kg)		250	400	490	550	700	770	960	1050

Product Details

Product Description

The automatic polymer dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears.
The machine includes different parts:dry powder hopper,infiltration device, Tank, Level controller, Mixer,water inlet pipe, Electric cabinet.

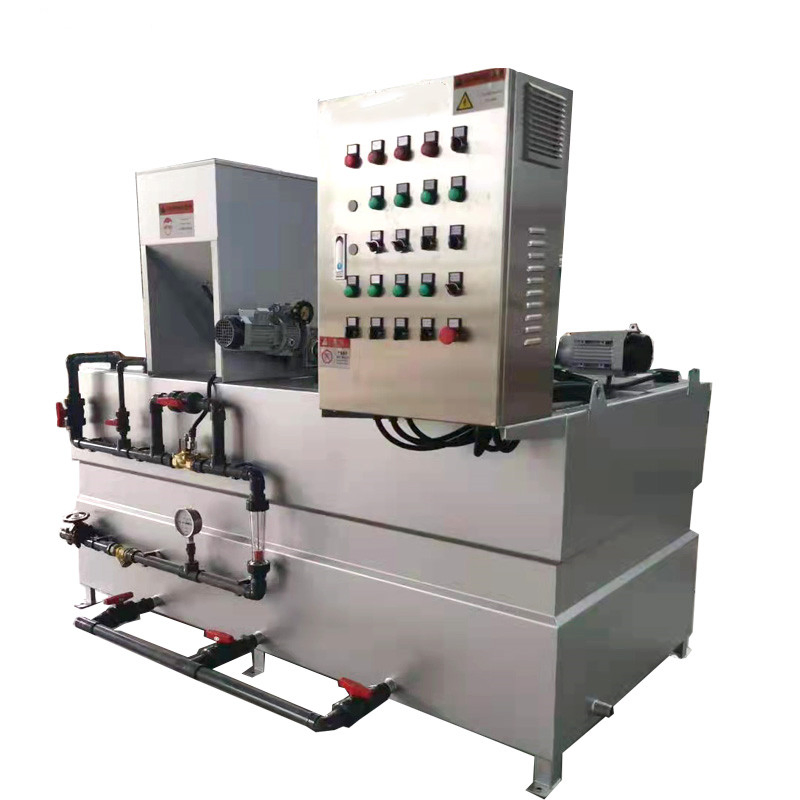

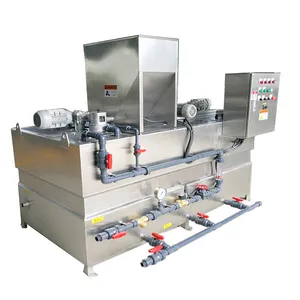

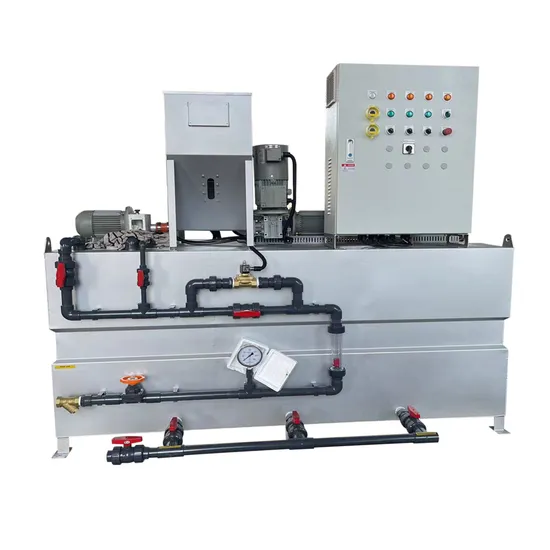

Detailed Photos
Wastewater Treatment Equipment Polymer Chemical Dosing Device

Features

Fully automatic operation &integrated with automatic dosing, dissolving and feeding.
The highly precise of dry polymer dosing device and the well-designed heater device can prevent the polymer from caking.
The dosage of dry polymer and water can be adjusted, so the concentration of the solution can be prepared purposely.The electric control cabinet can control the whole process, and it will alarm to warn the operator to add polymer powder when the powder reach low position.
Optional: Vacuum feeding machine
Optional: on-line dilution system
Tank material: SS304 or SS316, Polypropylene PP, FRP etc.

Structure Diagram

Wastewater Treatment Equipment Polymer Chemical Dosing Device
