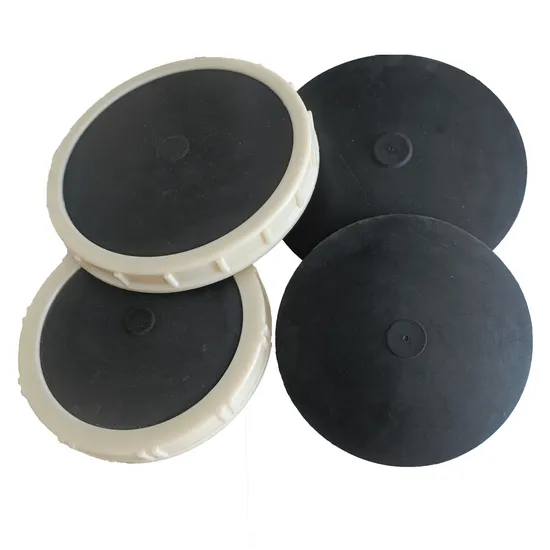

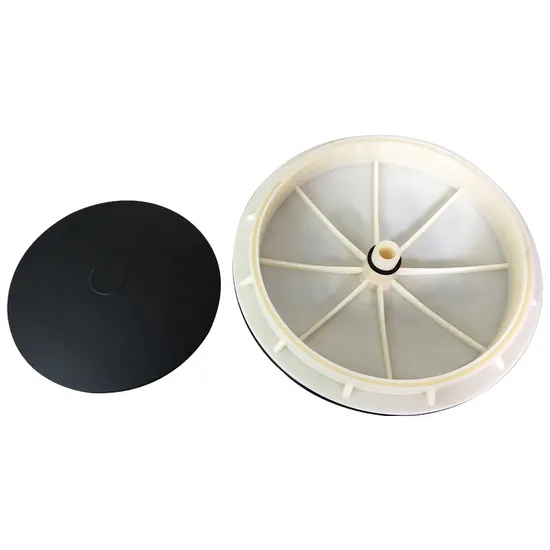

EPDM Membrane disc fine bubble air diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.

Features:

1.Structure for preventing re-flux:

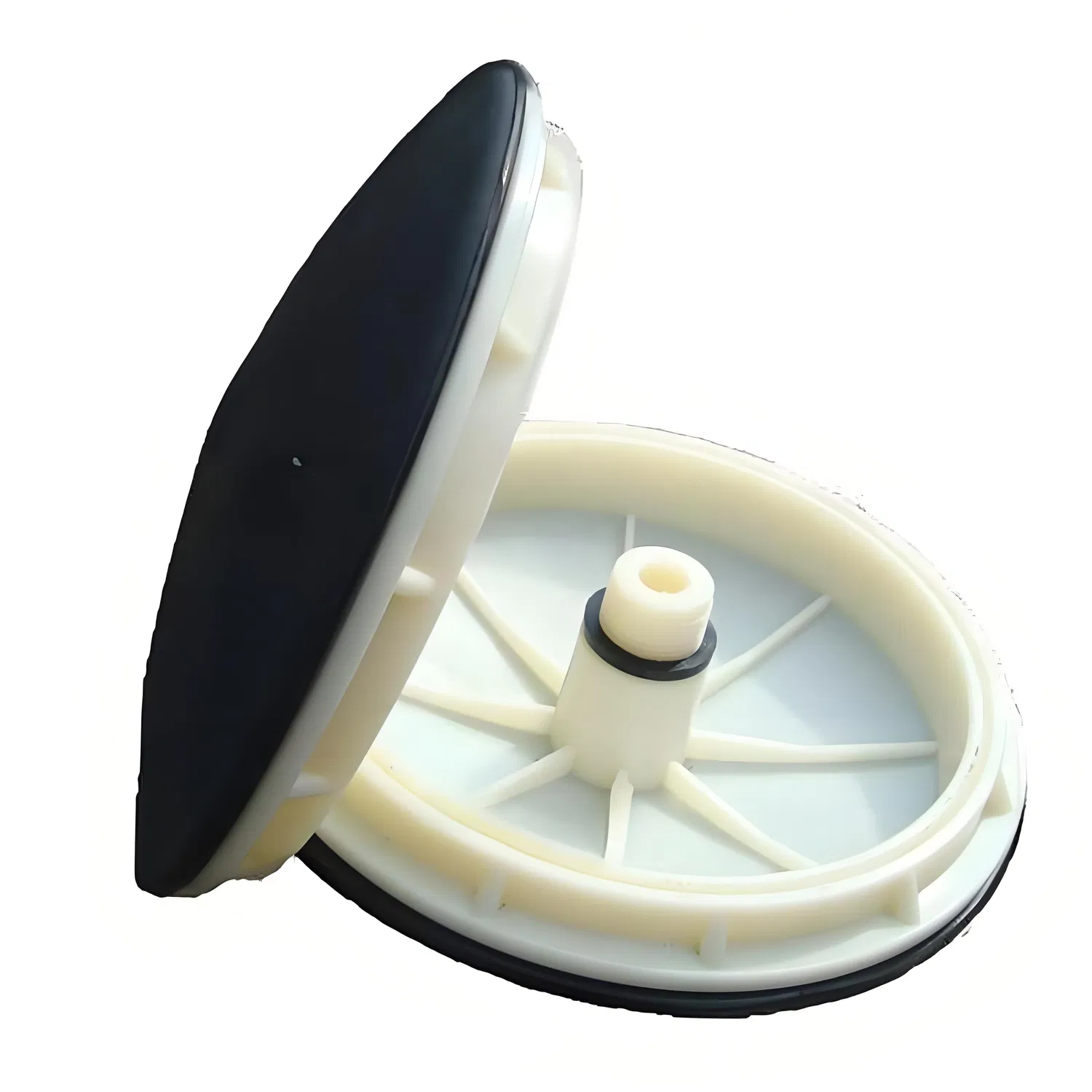

When air closed,the center of membrane falls on the orifice of membrane tray,and the non-perforated area can cover the air release orifice, similar to a check valve, to prevent liquid from flowing back into the aeration system. In addition, according to the characteristics of sewage treatment process, an independent check valve has been developed, which can be used in combination with diaphragm check

2.Special punching technology:

Over5,500 perforations in Dn200,over 6,300 perforations in Dn215,over 9,000 perforations in Dn260,over 10,000 perforations in Dn330. Air deflector diameter is 0.5cm, the contact space with membrane is 0.15cm, which make the opening rate of membrane can reach 99.9%.Also improve oxygenation capacity, oxygen utilzation rate and reduce ventilation resistance.

3.High pressure injection molding:

The professional machine is shaped by many processes, refined and cast, controlling every process and creating the perfect product.

4.Compact structure uniform gas distribution:

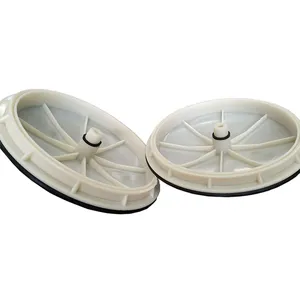

A folded-concave structure is better in sealing performance, which solves the disadvantage of easy tofalloff when the air flow is too large. Meanwhile,the chassis support add a guide ring and six air guide grooves. Compared with other existing aeration devices, under the same operating load, ours require aeration volume is greatly reduced,and the aeration is evenly distributed throughout the tank.
